Component identification 13
Item Description
1 PCI-X non-hot-plug expansion slot 1, 64-bit/100-MHz
(half-length)
2 PCI-X non-hot-plug expansion slot 2, 64-bit/100-MHz
(full-length)
3 PCI Express x4 non-hot-plug expansion slot 3 (full-length)
4 PCI Express x4 non-hot-plug expansion slot 4 (full-length)
5 PCI Express x8 non-hot-plug expansion slot 5 (full-length)
6 PCI Express x4 non-hot-plug expansion slot 6 (full-length)
7 PCI Express x8 non-hot-plug expansion slot 7 (full-length)
8 PCI Express x8 non-hot-plug expansion slot 8 (full-length)
9 PCI Express x4 non-hot-plug expansion slot 9 (half-length)
10 System battery
11 System maintenance switch (SW3)
12 Fan 6 connector
13 Fan 5 connector
14 Media board
15 Fan 1 connector
16 Fan 2 connector
17 BBWC battery pack
18 Fan 3 connector
19 Fan 4 connector

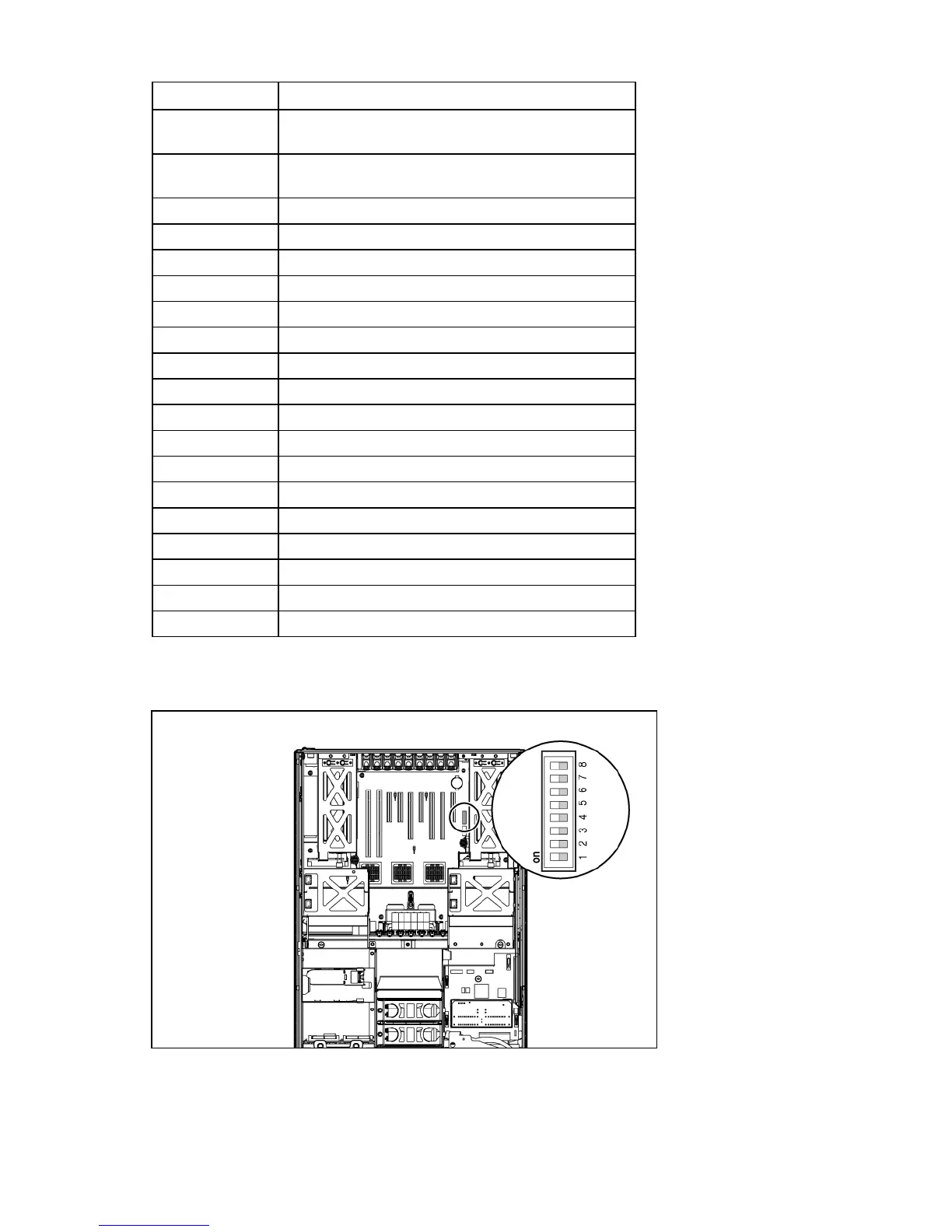

System maintenance switch (SW3)
The system maintenance switch (SW3) is an eight-position switch that is used for system configuration. The
default position for all eight positions is Off (closed).
