Hardware options installation 43

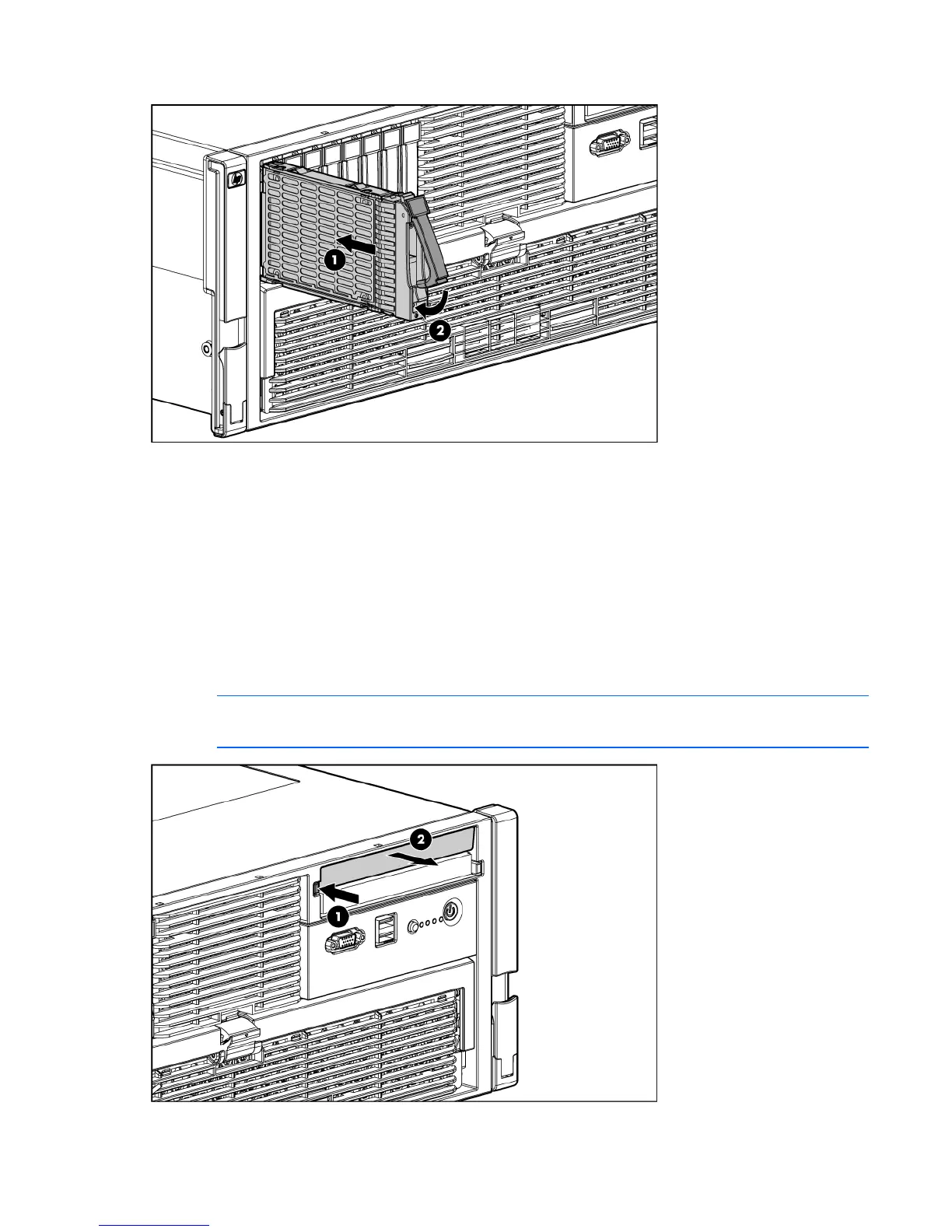

3.
Close the ejector lever.
4. Determine the status of the hard drive from the hot-plug SAS hard drive LED combinations ("SAS and
SATA hard drive LED combinations" on page 10).
Installing DVD, CD-ROM, or diskette drives
The server is shipped with one DVD drive. You can install an optional DVD drive, CD-ROM drive, or a
3.5-inch diskette drive.
To install an optional media drive:
1. Power down the server (on page 27).
2. Use the T-15 Torx screwdriver to eject the drive or drive blank, and pull it out of the server.
NOTE: The T-15 Torx screwdriver is shipped with the server and can be located on the rear
panel ("Rear panel components" on page 11).
