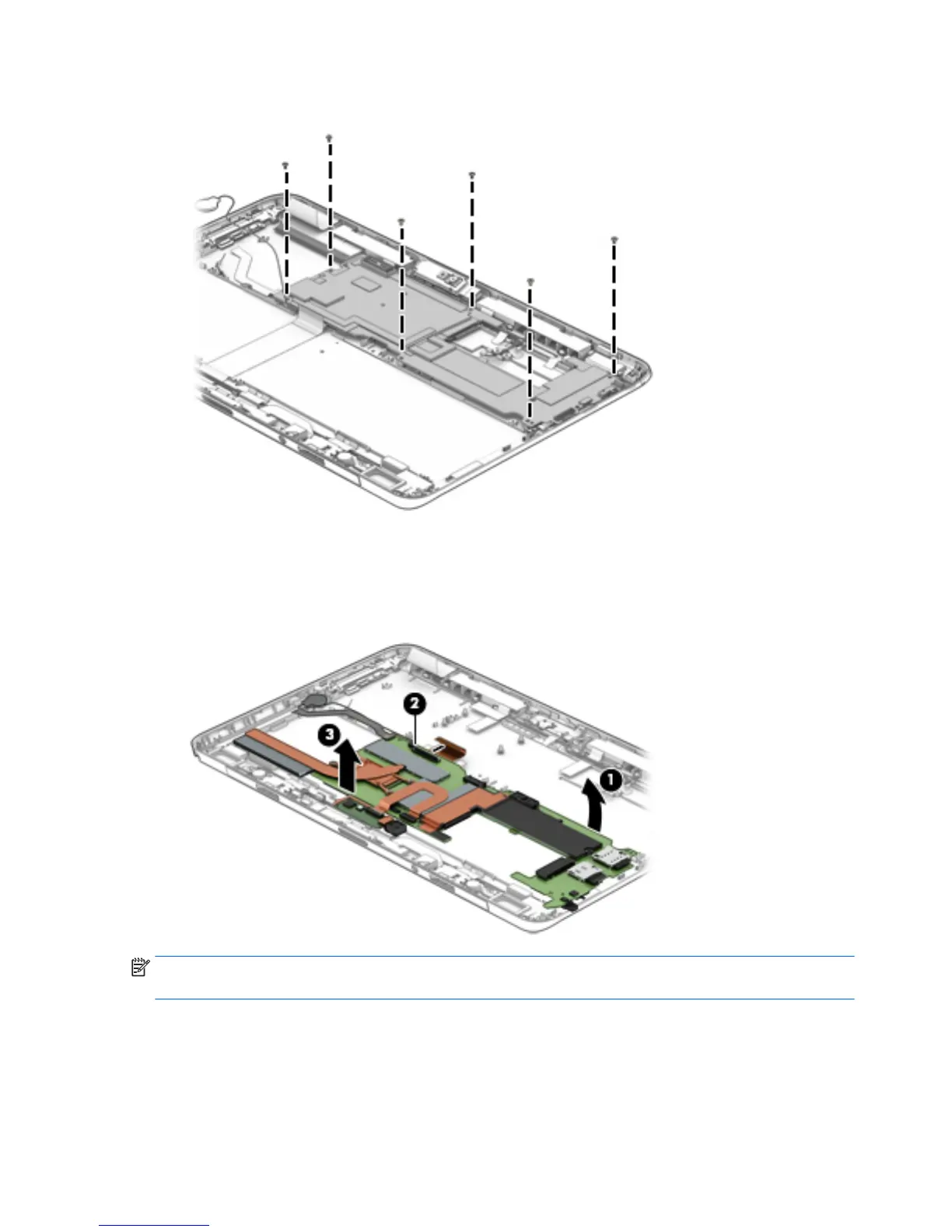

9. Remove the six Phillips PM1.5×2.3 screws that secure the system board to the bottom cover.
10. Flip the system board (1) up and forward so that it rests upside down in the bottom cover.
11. Release the ZIF connector (2) to which the docking connector board cable is attached, and then
disconnect the docking connector board cable from the system board.
12. Remove the system board (3).
NOTE: When removing the system board, it is possible for the power button actuator to accidentally fall out
of the bottom cover. To install the power button actuator, follow the ensuing procedure:
1. Toe the power button actuator into the bottom cover, making sure the tabs fit under the ridge built into
the right side of the bottom cover.
56 Chapter 5 Removal and replacement procedures – slate

HP Elite x2 1011 G1 Specifications

General

Stepping	F0
Tjunction	95 °C
Processor code	SR23L
Processor cache	4 MB
Processor cores	2
System bus rate	- GT/s
Processor family	Intel® Core™ M
Processor series	Intel Core M-5Y Mobile series
Processor threads	4
Processor codename	Broadwell
Processor frequency	1.1 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor package size	30 x 16.5 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor boost frequency	2.6 GHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	14 nm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	4.5 W
Scenario Design Power (SDP)	3.5 W
Configurable TDP-down frequency	0.6 GHz
Internal memory	8 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3L-SDRAM
Storage media	SSD
Compatible memory cards	MicroSD (TransFlash)
Internal storage capacity	256 GB
Display diagonal	11.6 \
Touch technology	Multi-touch
Graphics card	HD Graphics 5300
Rear camera type	Single camera
Rear camera resolution (numeric)	5 MP
Front camera resolution (numeric)	2 MP
Processor ARK ID	84669
Processor socket	BGA 1234
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Near Field Communication (NFC)	-
Microphone in	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Country of origin	China
Device type	Tablet PC
Form factor	Slate
Product color	Black, Silver
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Battery capacity	- mAh
Battery life (max)	9 h
Platform	Windows
Operating system installed	Windows 8.1 Pro

Weight and Dimensions

Depth	192.7 mm
Width	298 mm
Height	10.7 mm
Weight	780 g
