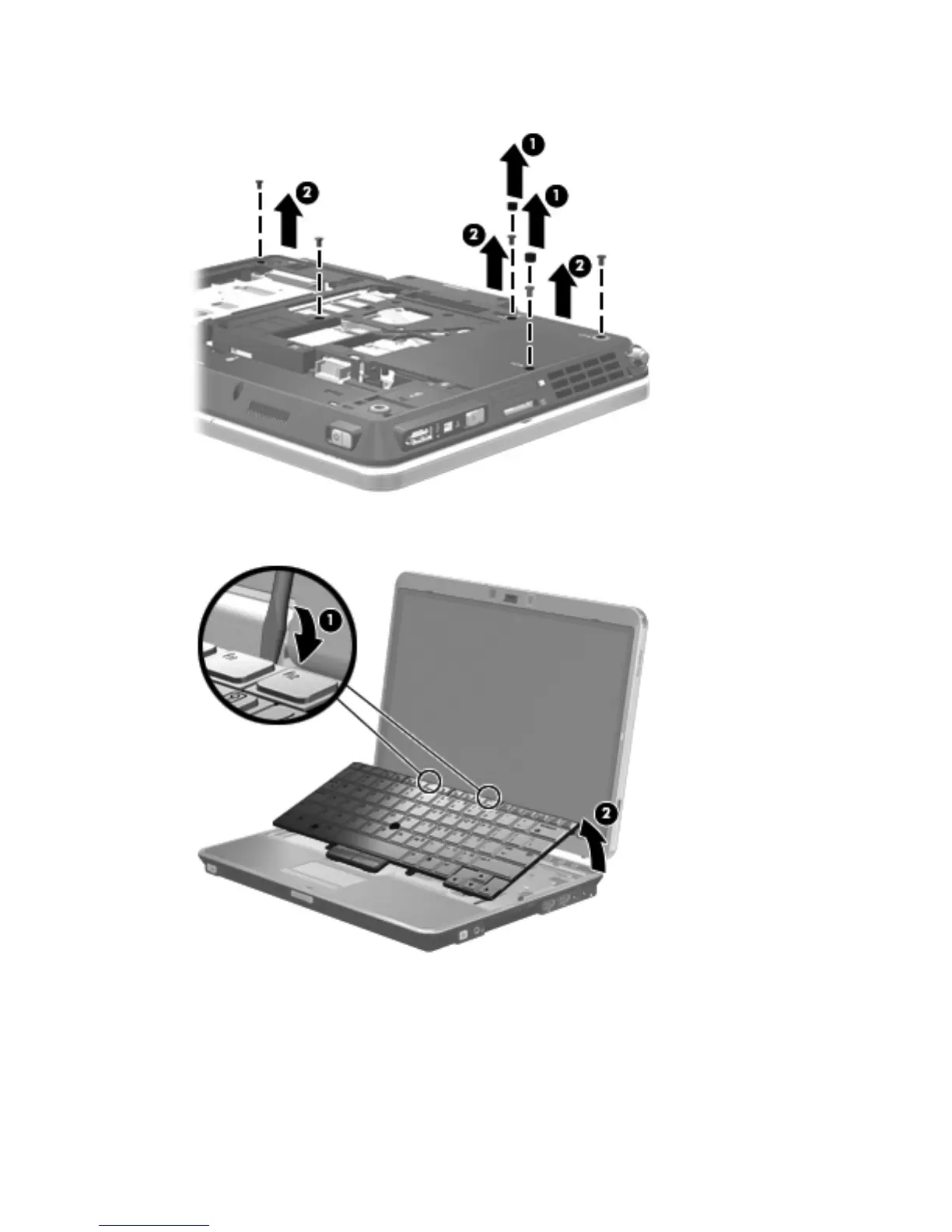

6. Remove the 2 rubber covers (1) and 5 keyboard screws (2) on the bottom of the computer.
7. Using a thin, flat tool, release the tabs around the keyboard (1) and lift the keyboard up at an
angle to expose the keyboard and pointing stick ZIF connectors (2).
8. Lift the pointing stick ZIF connector up (1) and remove the cable from the ZIF connector (2).
9. Lift the keyboard ZIF connector up (3) and remove the cable from the ZIF connector (4).
38 Chapter 6 Maintenance
