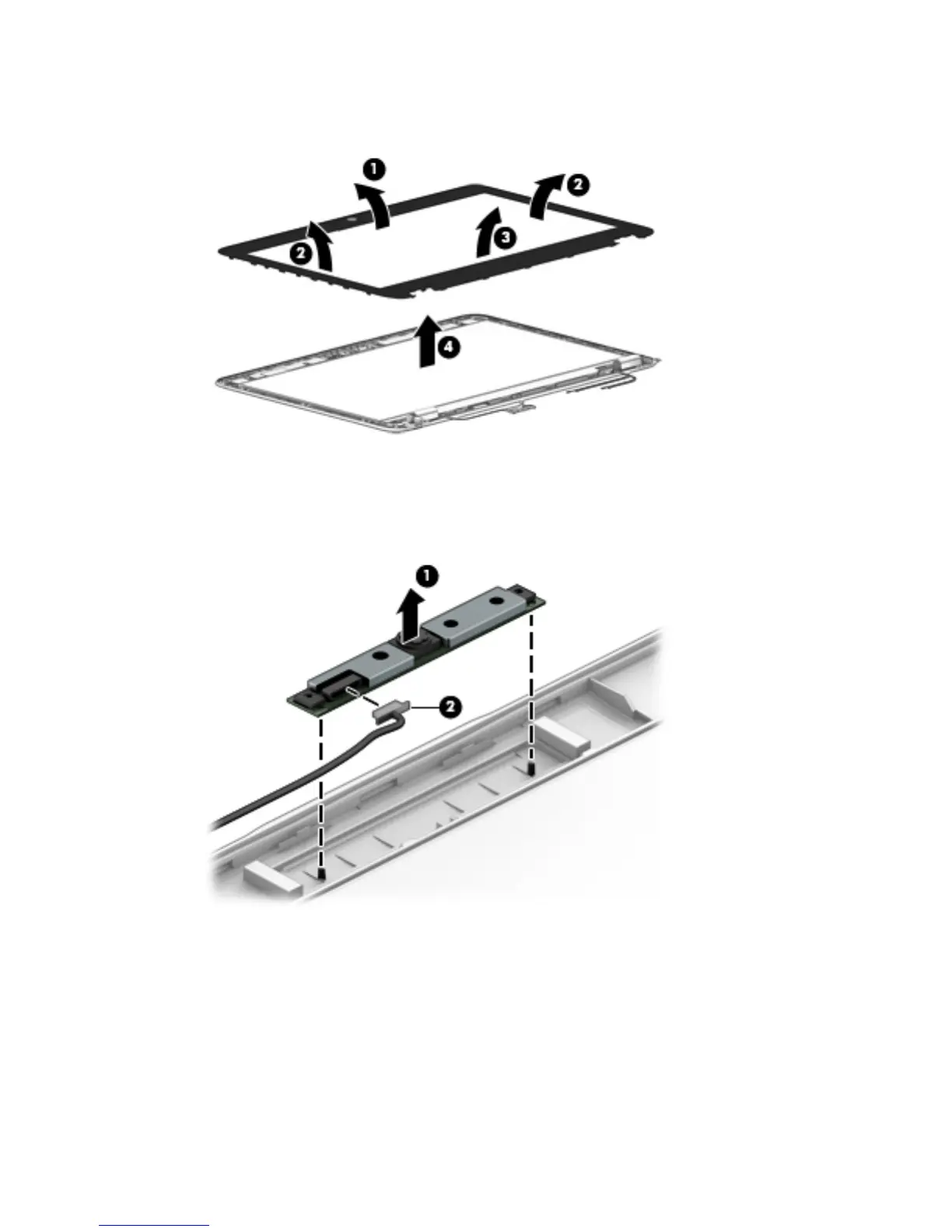

7. Remove the display bezel (4).
The display bezel is available using spare part number 821658-001.
8. If it is necessary to replace the webcam or microphone module, gently pull the module away from the
double-sided tape on the display enclosure (1), and then disconnect the cable from the module (2).
The webcam module is available using spare part number 821676-001. The microphone module is
available using spare part number 821696-001.
Component replacement procedures 63
