Hard drive
NOTE: The hard drive spare part kit does not include the hard drive bracket or screws. The hard drive
bracket and screws are included in the Hard Drive Hardware Kit, spare part number 730793-001.
Description Spare part number
1-TB, 7200-rpm, SATA, 9.5-mm hard drive for use on all computer models 766644-001
500-GB, 7200-rpm, SATA, 7.0-mm hard drive for use on all computer models 703268-001
500-GB, 7200-rpm, SED, 7.0-mm hard drive for use on all computer models 703267-001
500-GB, 5400-rpm, FIPS, 7.0-mm hard drive for use on all computer models 730946-001
Before removing the hard drive, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service cover (see Service cover on page 51).
5. Remove the battery (see Battery on page 53).

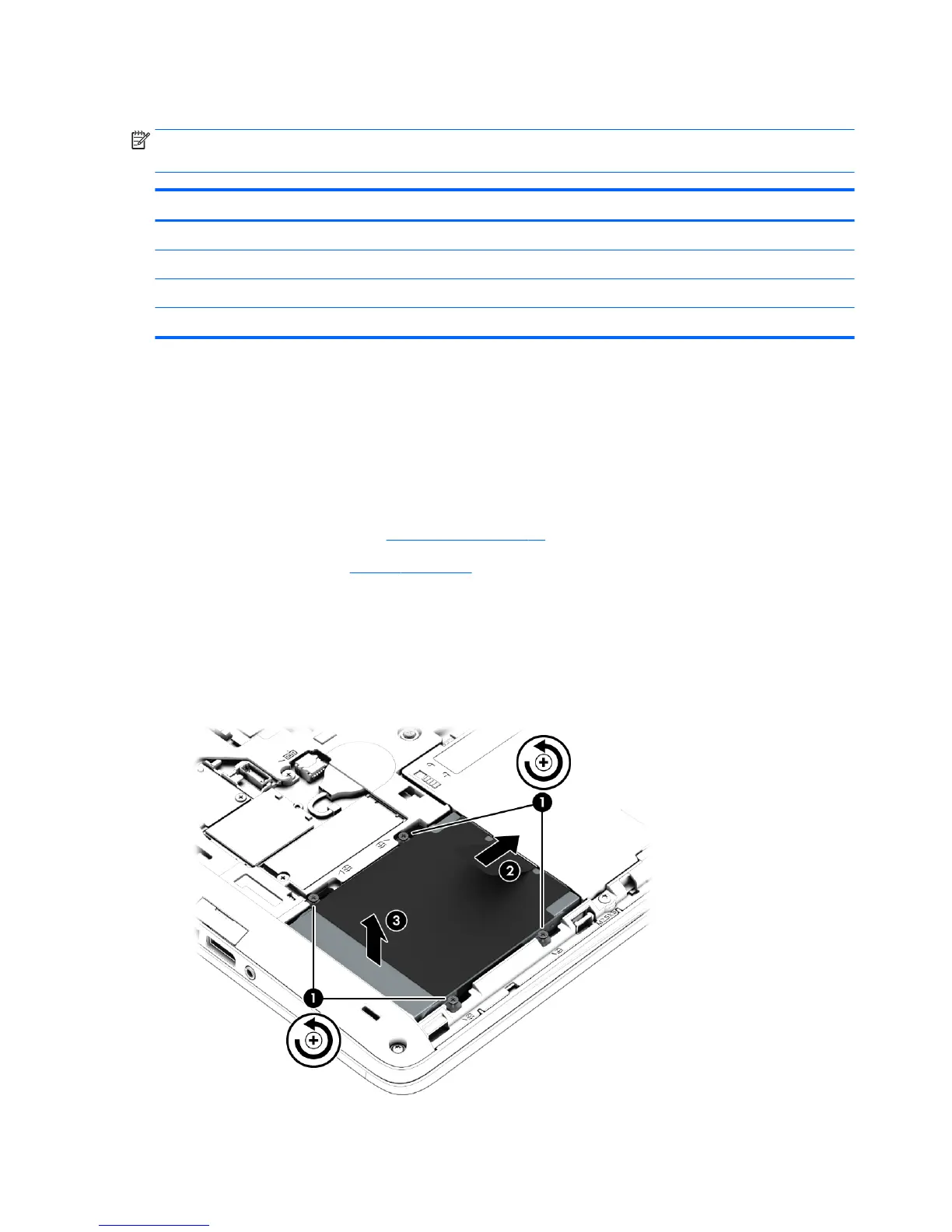

Remove the hard drive:
1. Loosen the 4 hard drive retention screws (1).
2. Release the hard drive (2) by sliding it forward.
3. Lift the hard drive (3) and remove it.
54 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts ENWW
