Display assembly
Description Spare part number
Display panel assembly, touch screen
NOTE: Touch screen display assemblies are spared only as whole unit hinge-ups.
NOTE: Non-touch display assemblies are spared at the subcomponent level only. For more non-touch
display assembly spare part information, see Display assembly subcomponents on page 21.
910584-001
Display panel assembly, privacy
NOTE: All privacy display assemblies including non-touch are spared as whole unit hinge-ups.
922076-001
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 32).
5. Remove the battery (see Battery on page 36).
6. Remove the internal base plate (see Internal base plate on page 50)
Remove the display assembly:

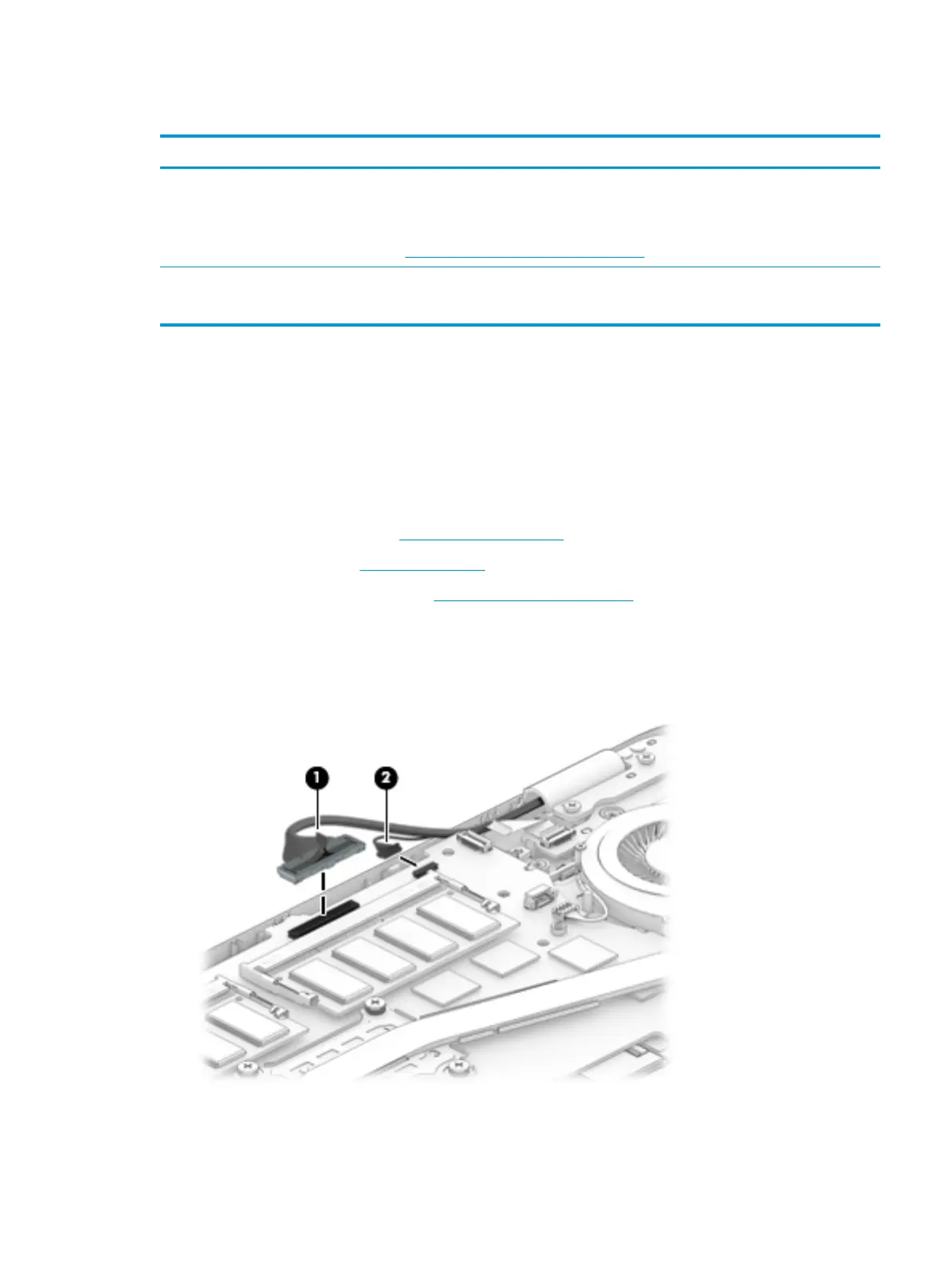

1. Disconnect the display cable (1) and the touch cable (2) from the system board.
2. Remove the 3 Phillips M2.5×5.0 screws (1) from the display hinges.
Component replacement procedures 67
