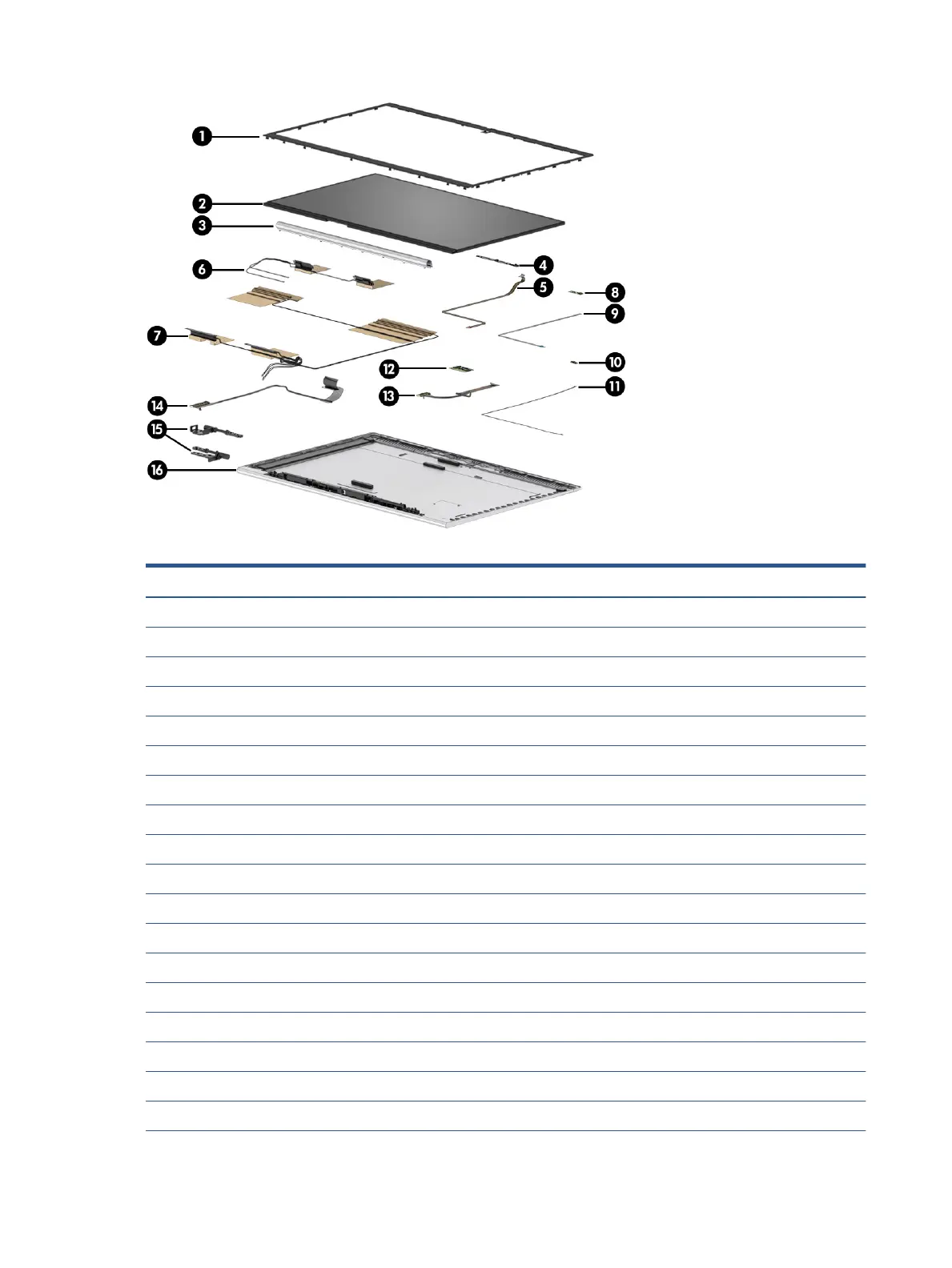

Table 3-2 Display component descriptions and part numbers
Item Component Spare part number
(1) Bezel
For use in models with an IR camera and ambient light sensor M07163-001
For use in models with an IR camera M07164-001
For use in models with an RGB camera and ambient light sensor M07165-001
For use in models with an RGB camera M07166-001
For use in models with a microphone module (no camera) M07100-001
(2) Display panel
1000 nits, ambient light sensor M08711-001
250 nits, models with WWAN M07092-001
250 nits, models without WWAN, IR camera, Touch-on Panel (TOP) M07094-001
400 nits, models without WWAN, IR camera, ambient light sensor M07093-001
LCD Support Kit (not illustrated) M25066-001
(3) Hinge cover (included in Hinge Kit) M07104-001
(4) Camera module
RGB camera M07216-001
IR camera M08549-001
(5) Camera cable (included in Cable Kit) M07101-001
(6) WLAN antennas and cables
20 Chapter 3 Illustrated parts catalog
