Table 3-3 Cable Kit content descriptions and part number (continued)
Component Spare part number
Dual ambient light sensor to display panel cable
Touchpad cable
Fingerprint reader board cable
Smart card reader to system board cable
NFC module to system board cable
USB board to system board cable
Camera/microphone module to hub board cable
Bracket Kit

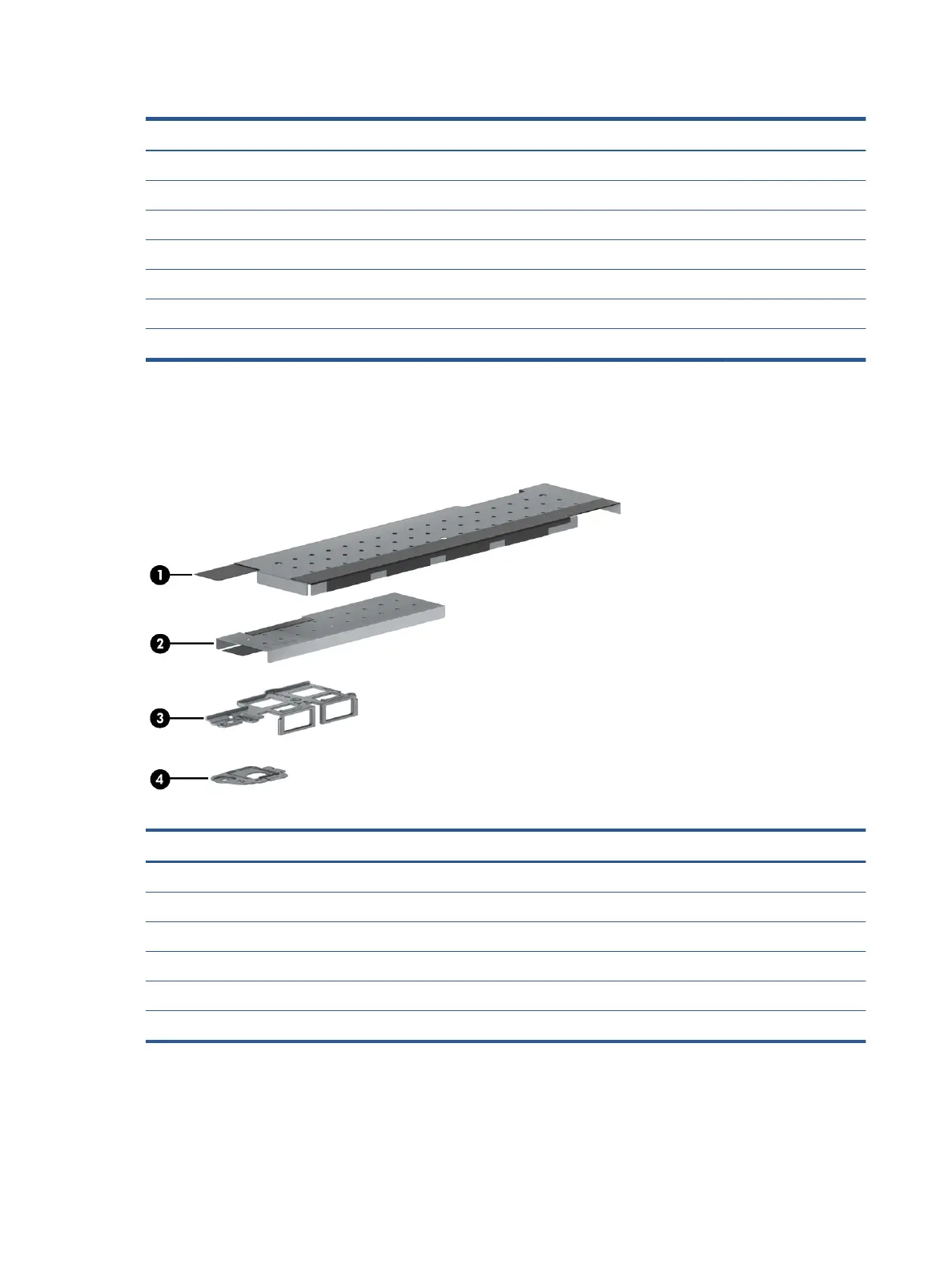

To identify the Bracket Kit components, use this illustration and table.
Table 3-4 Bracket Kit component descriptions and part numbers
Item Component Spare part number
Bracket Kit, includes: M08556-001
(1) Memory cover
(2) Solid-state drive cover
(3) USB bracket
(4) Fingerprint reader bracket
SIM tray (not illustrated)
Plastics Kit
To identify the Plastics Kit components, use this illustration and table.
22 Chapter 3 Illustrated parts catalog
