1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Remove the bottom cover (Bottom cover on page 32).
3. Remove the battery (see Battery on page 41).

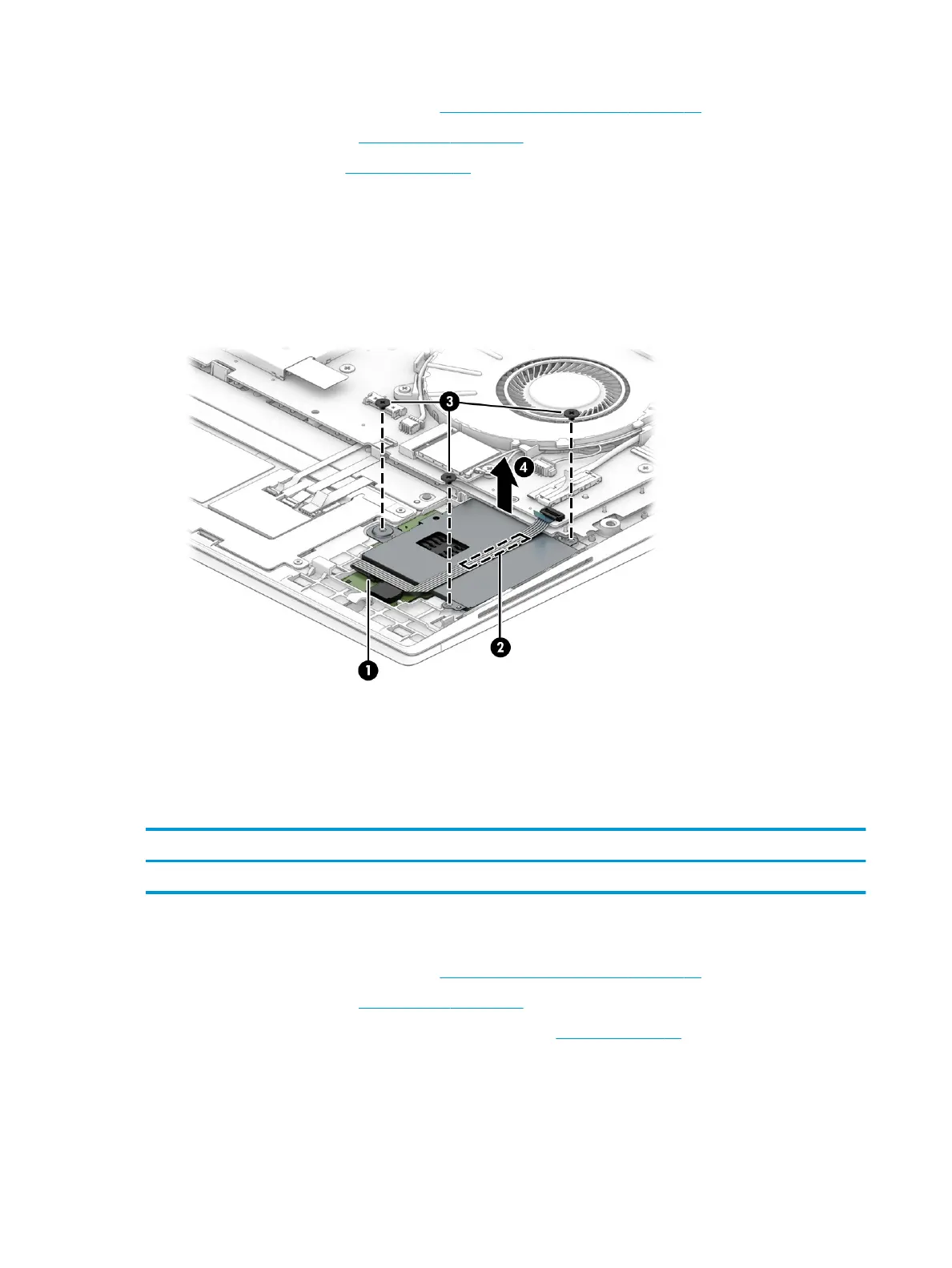

Remove the card reader board:
1. Disconnect the cable from the reverse ZIF connector on the card reader board (1).
2. Peel the cable o the card reader board (2).
3. Remove the three Phillips M2.0 × 2.0 screws (3) that secure the board to the computer.
4. Remove the board from the computer (4).
Reverse this procedure to install the card reader board.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table
6-4 Power connector cable description and part number
Description Spare part number
Power connector cable M15626-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Remove the bottom cover (Bottom cover on page 32).
3. Disconnect the battery cable from the system board (see Battery on page 41).
Remove the power connector cable:
1. Disconnect the cable from the system board (1), and then remove the cable from the clip (2).
2. Remove the Phillips M2.0 × 4.0 screw (3) that secures the power connector cable to the computer.
44 Chapter 6 Removal and replacement procedures for authorized service provider parts
