HP EliteBook 850 G7 - HP Sure Recover Usage

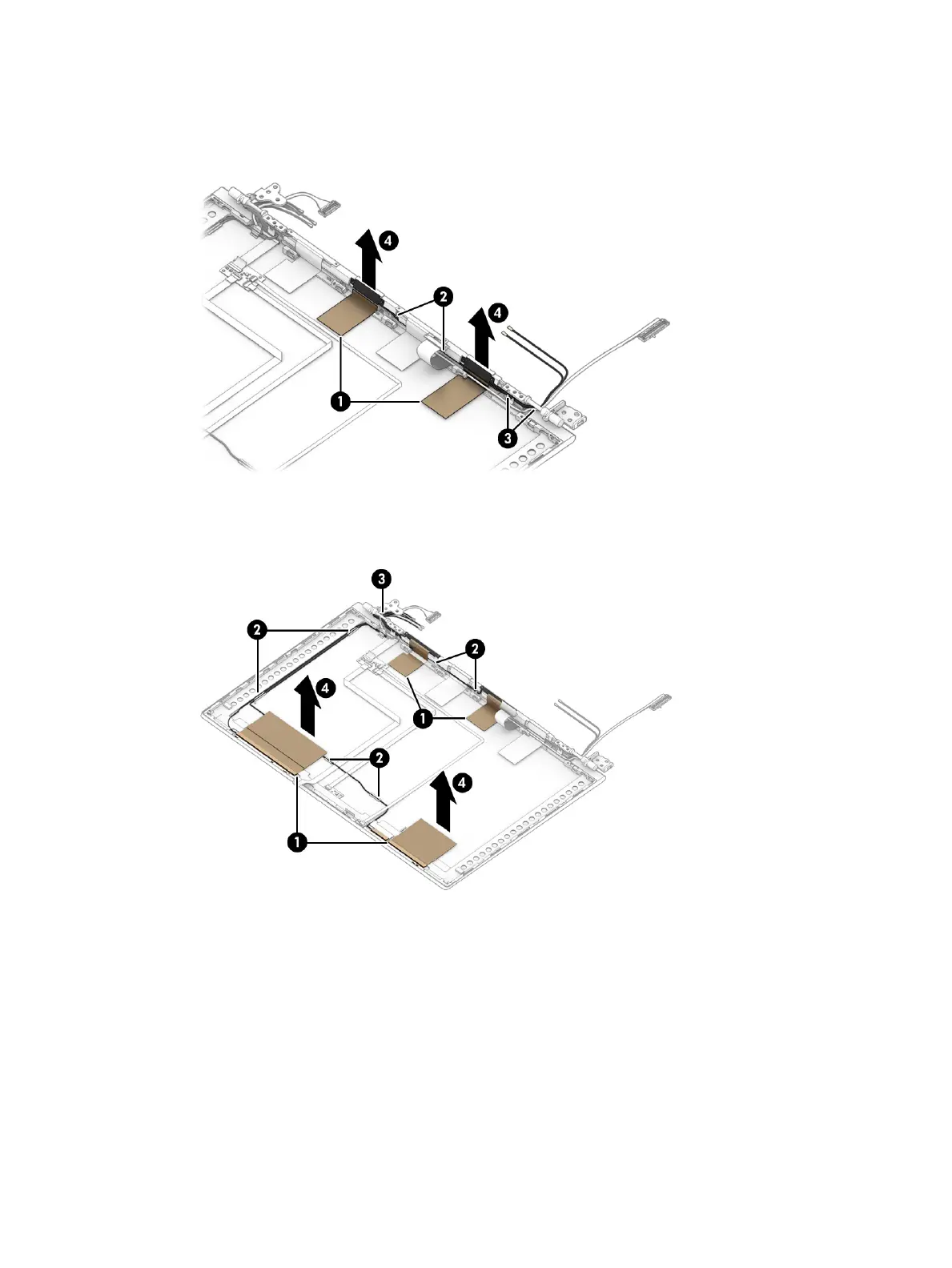

20. If you need to remove the WLAN antenna cables, peel the antennas o the inside of the display back
cover (1), remove the cables from the clips at the bottom of the cover (2), (3), and then remove the
antennas and cables (4).
21. If you need to remove the WWAN antenna cables, peel the antennas o the inside of the display back
cover (1), remove the cables from the clips in the back (2) and near the hinge on the display back cover
(3), and then remove the antennas and cables (4).
Component replacement procedures 69
