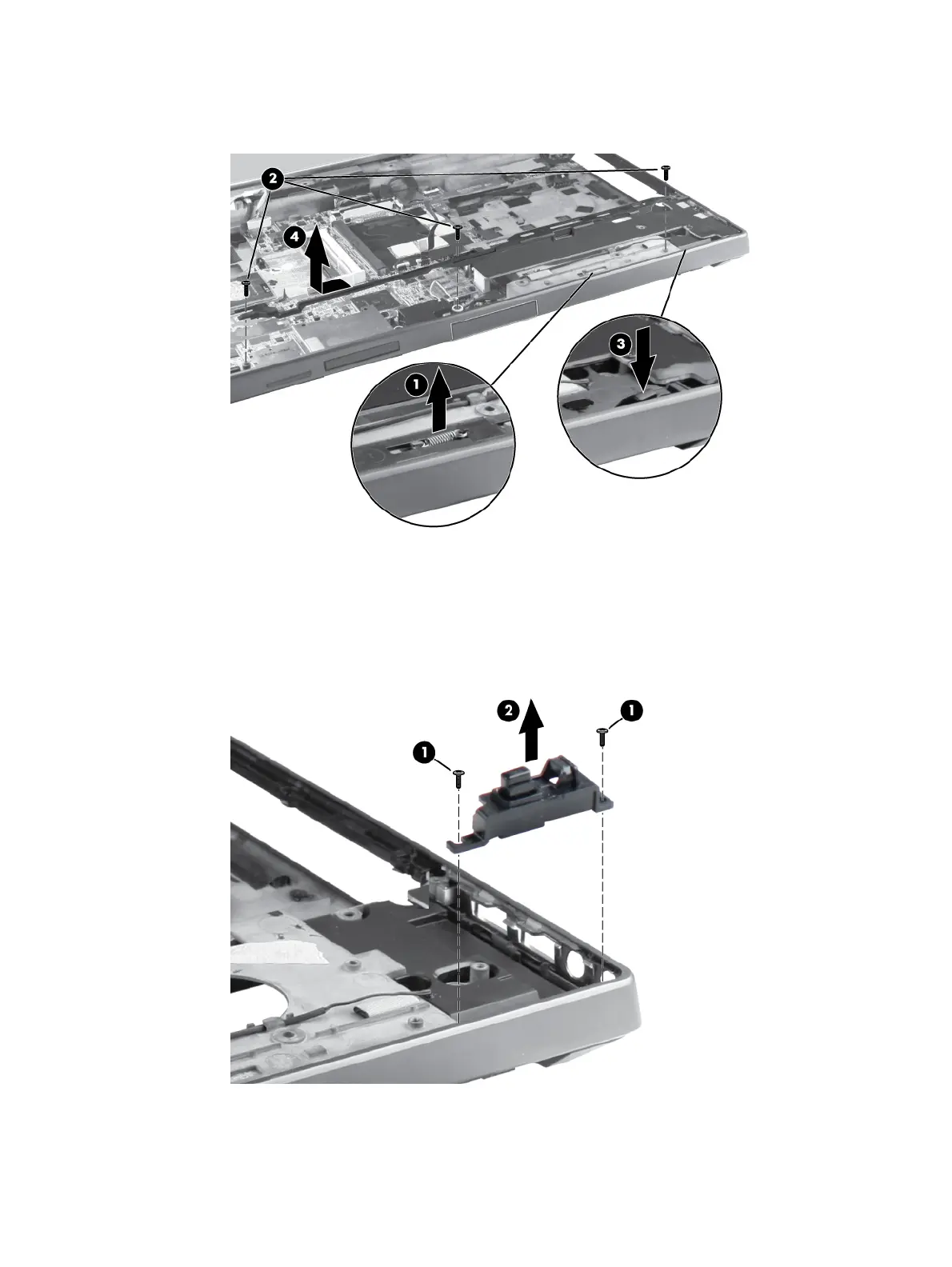

d. Slide the display latch lock to the left and remove by pulling straight up from the base
enclosure (4).
3. Remove the display latch spring buttons:
a. In the lower right corner of the base enclosure, remove the two Torx 8 screws (1) that secure
the display latch spring button to the base enclosure.
b. Lift the right display latch spring button (2) straight up from the base enclosure.
4. Remove the tape (1) from the top of the speakers.
Component replacement procedures
111
