HP EliteBook 8570w

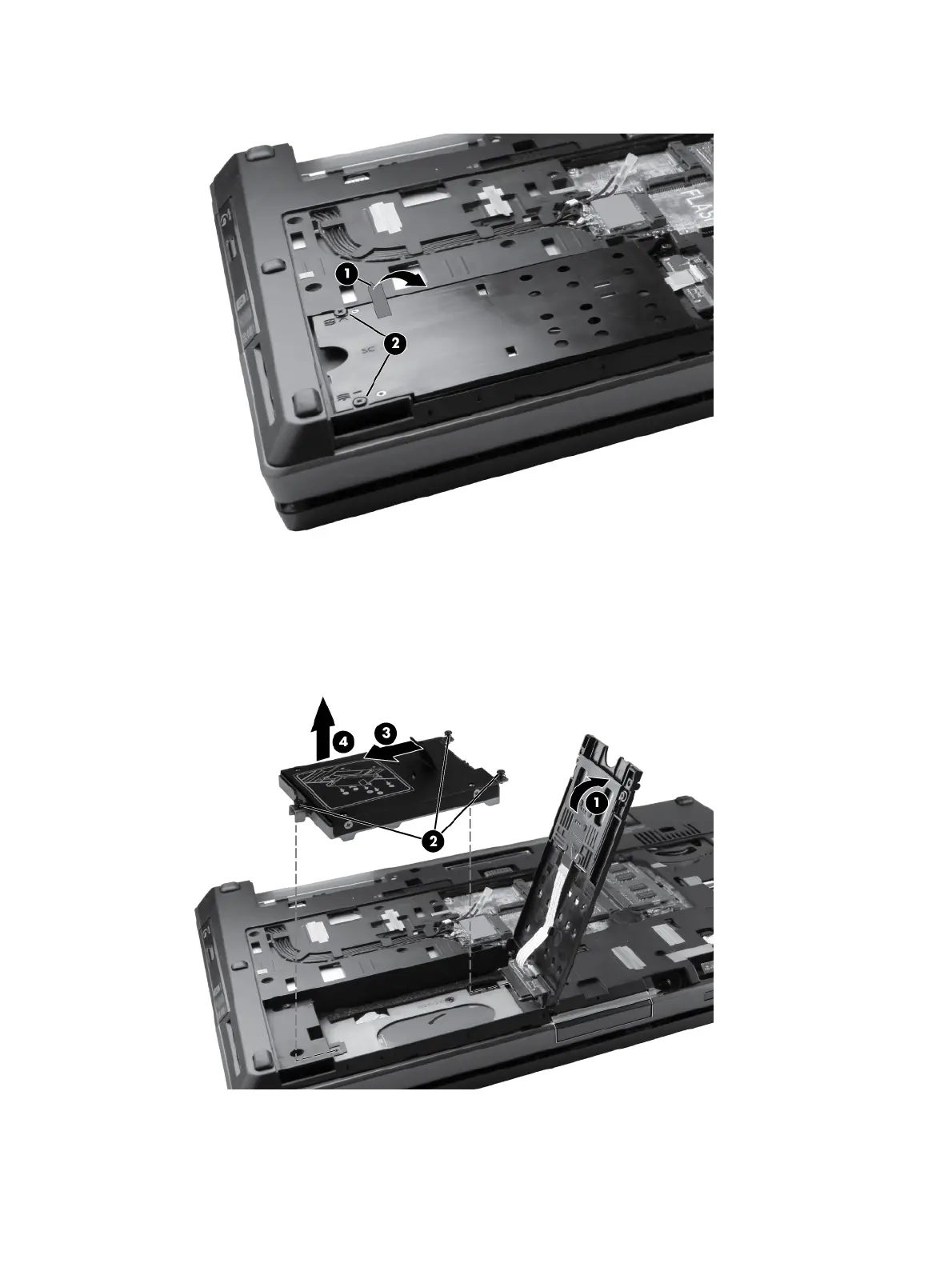

3. Loosen the two Phillips captive screws (2) that secure the smart card reader door to the computer.
4. Open the smart card reader door until it rests on its hinges (1).
5. Remove three Phillips spring-loaded screws (2) that secure the hard drive to the computer.
6. Grasp the tab on the hard drive, pull the hard drive to the left (3), and remove the hard drive (4)
from the hard drive bay.
7. If it is necessary to replace the hard drive bracket, remove the four Phillips hard drive bracket
screws (1) from the sides of the hard drive.
Component replacement procedures
73
