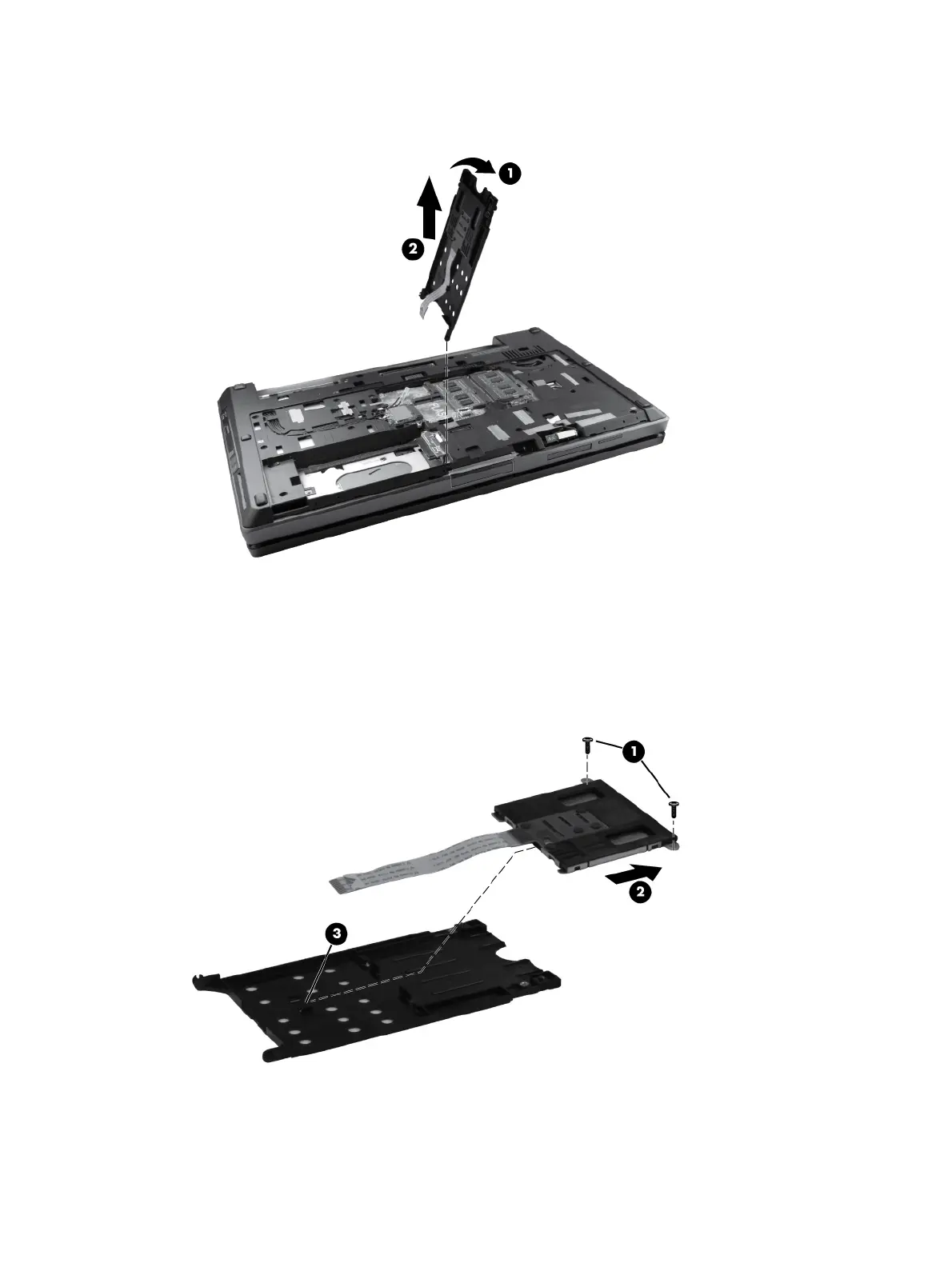

3. Reopen the door, tilt the door towards you (1), and then lift the smart card reader door straight up
from the computer (2).
4. If it is necessary to replace the smart card reader, remove the two Phillips screws (1) that secure
the smart card reader to the smart card reader door.
5. Slide the smart card reader out of the smart card reader door (2) while allowing the cable to slide
out of the door guide (3).
Reverse this procedure to reassemble and install the smart card reader.
76 Chapter 4 Removal and replacement procedures
