HP EliteBook 8570w

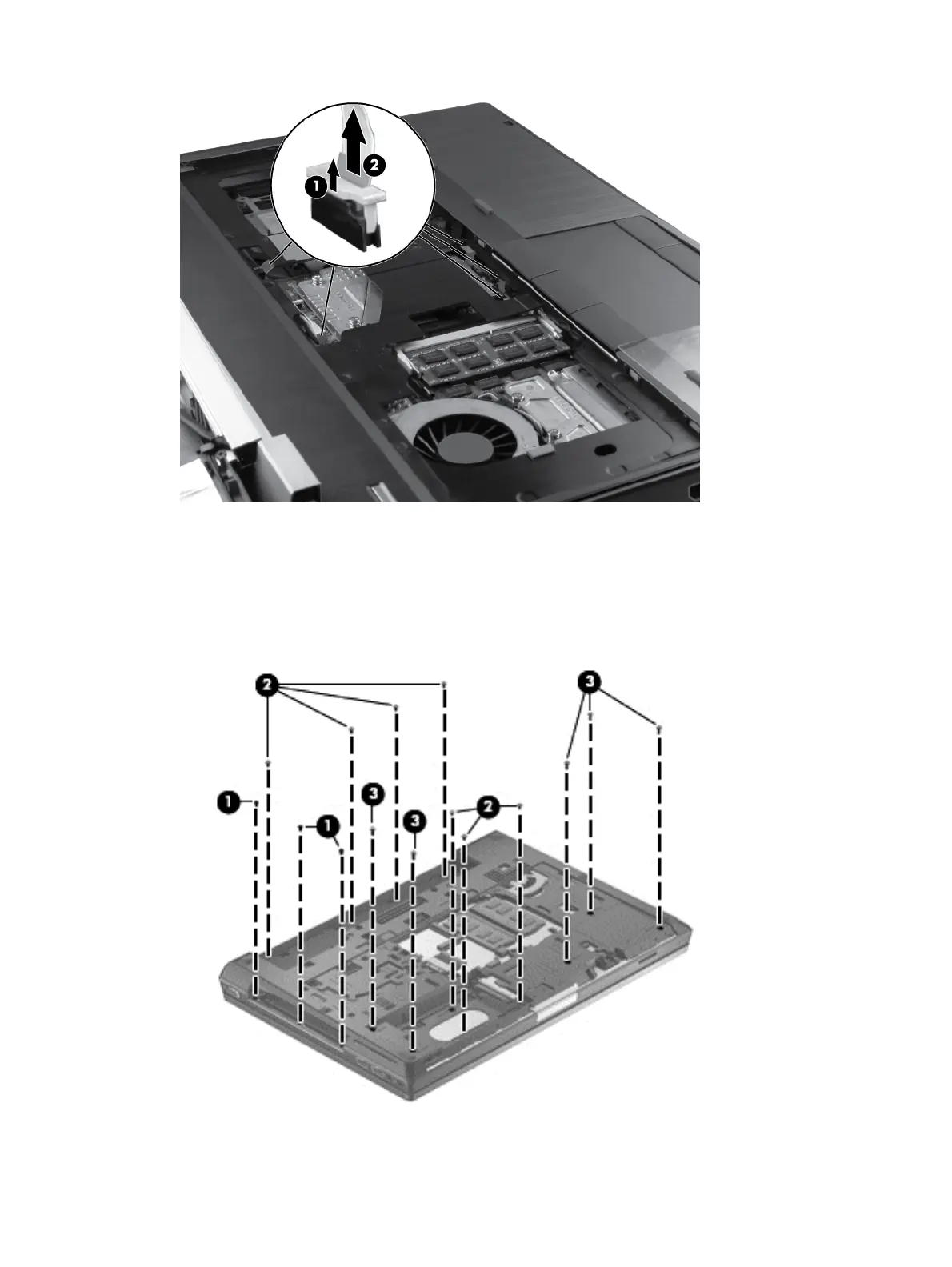

3. Remove the following screws that secure the top cover to the base enclosure:
●
Three Phillips screws from the Upgrade bay (1).
●
Three Torx 8 screws in the hard drive bay and four Torx 8 screws in the battery bay (2).
●
Five Torx 8 screws from the front edge and middle of the computer (3).
88 Chapter 4 Removal and replacement procedures
