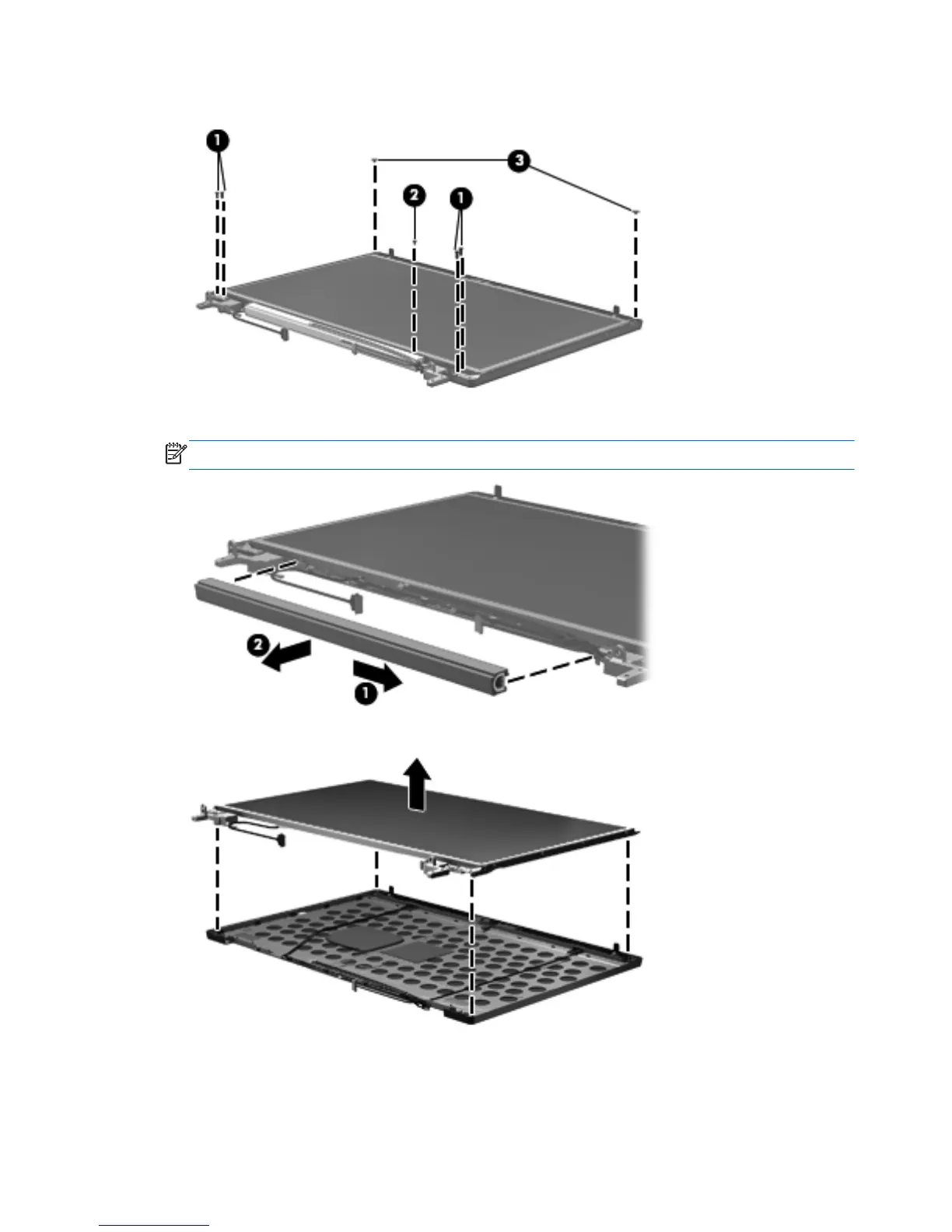

3. Remove the 1 Phillips screws (3) that secure the display panel brackets to the hinge pipe.
4. Slide the hinge pipe to the right (1) and remove the hinge pipe (2).
NOTE: Make sure you pull back the antenna cables when removing the hinge pipe.
5. Remove the display panel.
Reverse this procedure to reassemble and to install the display panel.
80 Chapter 4 Removal and replacement procedures
