Drive power cable
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).

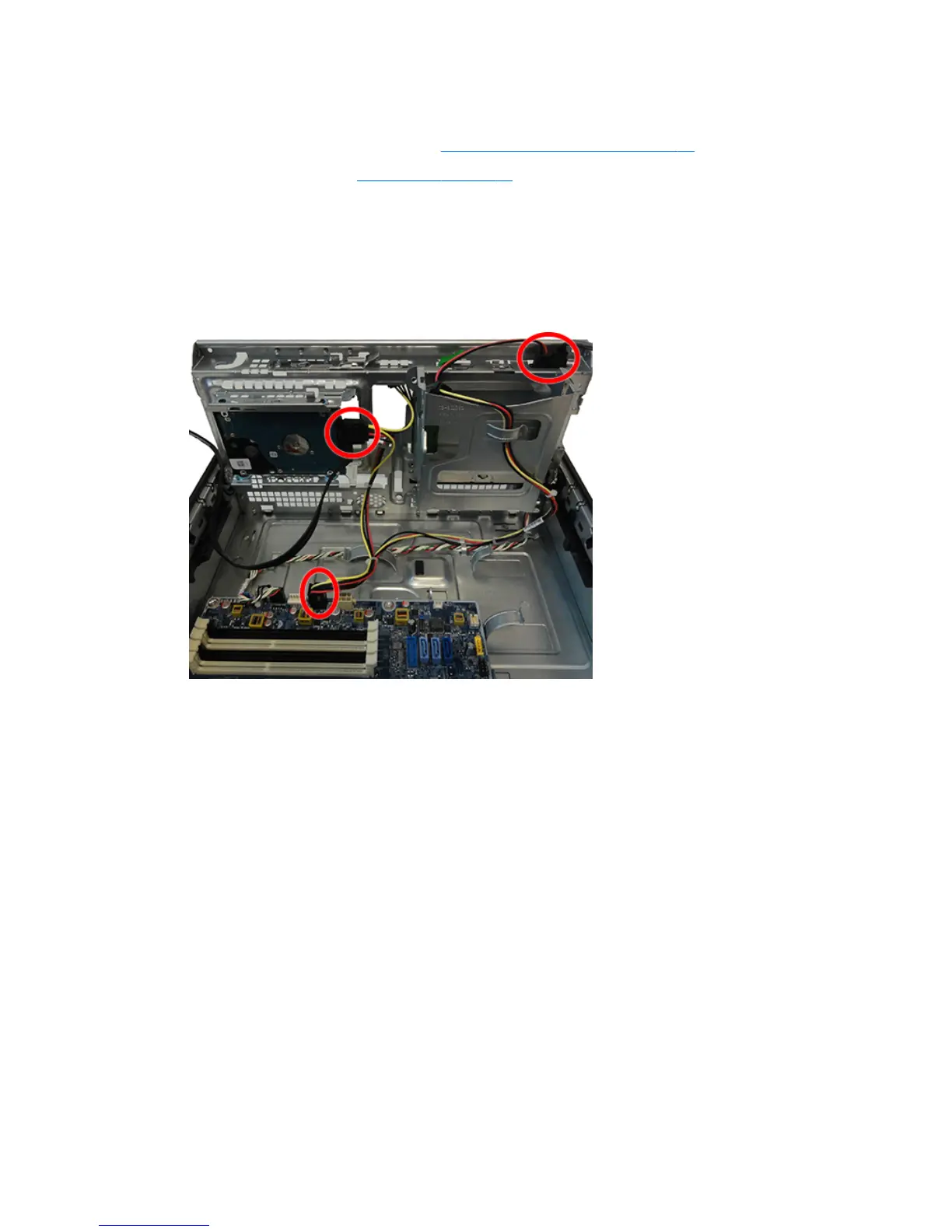

3. Rotate the drive cage to its upright position.
4. Disconnect the cable from the system board connector labeled SATAPWR0.
5. Disconnect the cable from the hard drive and the optical drive.
6. Remove the cable from the clips on the base pan and on the drive cage, and then remove the drive
power cable from the computer.
To reinstall the drive power cable, reverse the removal procedure.
