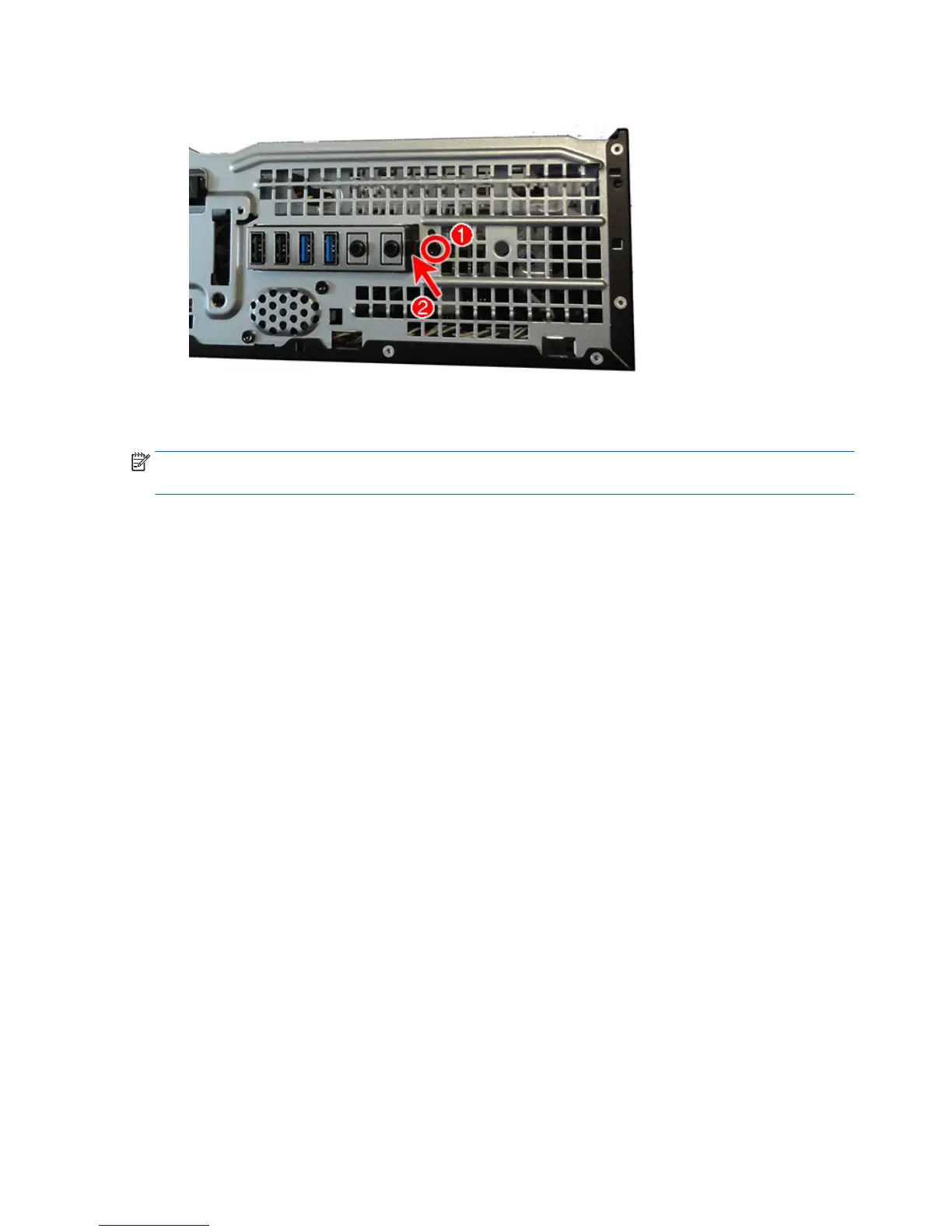

8. Press the tab on the right side of the assembly (2), and then push the assembly into the computer.
9. Remove the front I/O assembly from the inside of the computer.
To install the front I/O assembly, reverse the removal procedure.
NOTE: Be sure to correctly route the cables beneath the drive cage when reinstalling the assembly. Proper
cable routing prevents damage to the cables and allows the drive cage to close properly.
52 Chapter 4 Removal and replacement procedures – small form factor (SFF) chassis
