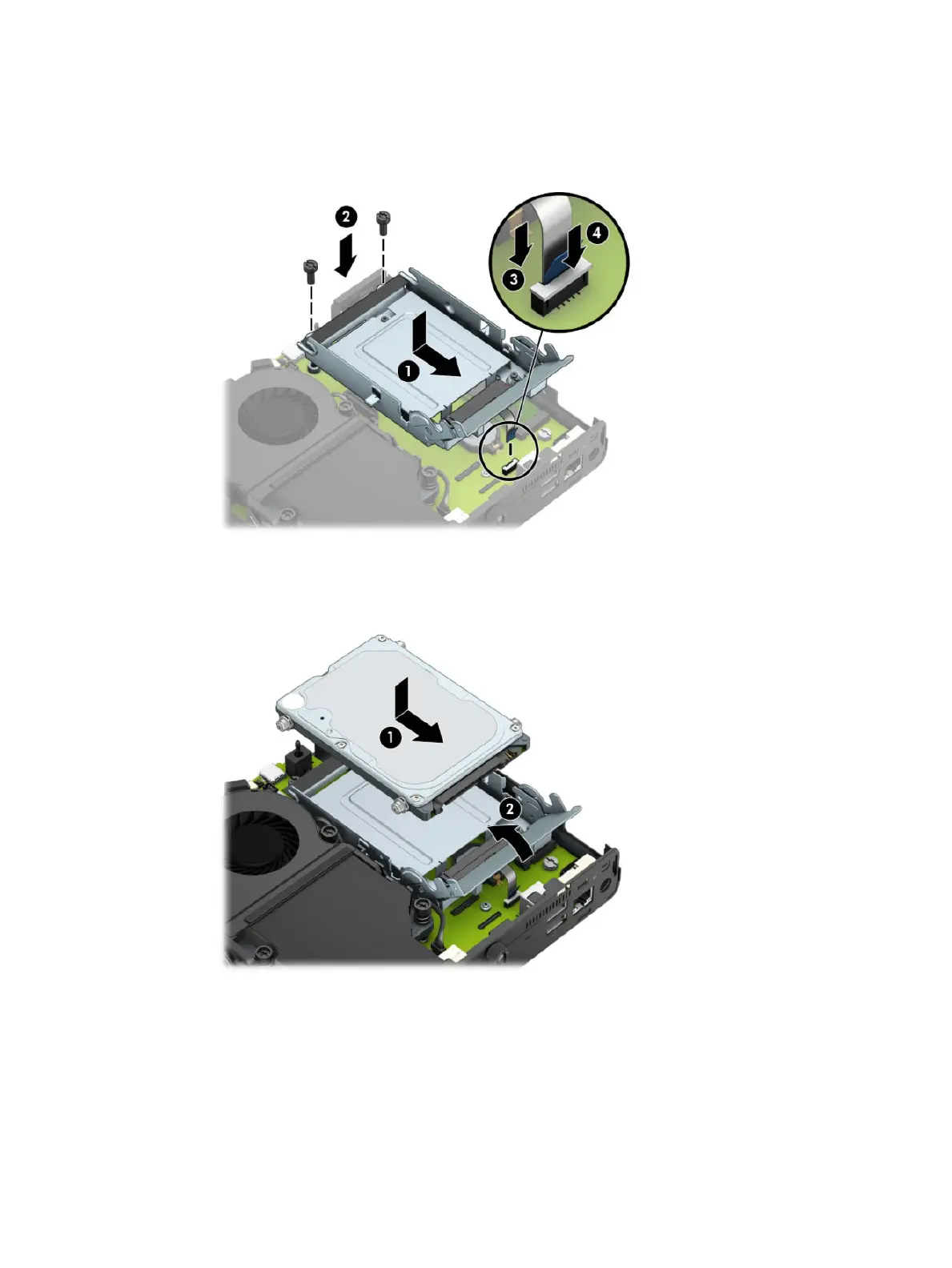

a. Place the hard drive cage down into the chassis, and then slide it forward (1). Install the two screws
(2) that secure the hard drive cage to the chassis, and then connect the hard drive cable (3) to the
system board. Secure the cable by attaching the hard drive cable clamp (4) to the system board
connector.
b. Align the hard drive mounting screws with the slots on the hard drive cage, press the hard drive
down into the cage, and slide it forward (1). Then rotate the hard drive latch down (2) to engage the
hard drive.
For models with a graphics processor:
a. Place the graphics processor down into the chassis so that it connects with the system board (1),
and then secure the graphics processor to the system board with the three screws (2).
36 Chapter 3 Hardware upgrades
