HP EliteDesk 800 G1 series

HP EliteDesk 800 G1 Small Form Factor Desktop Business PC

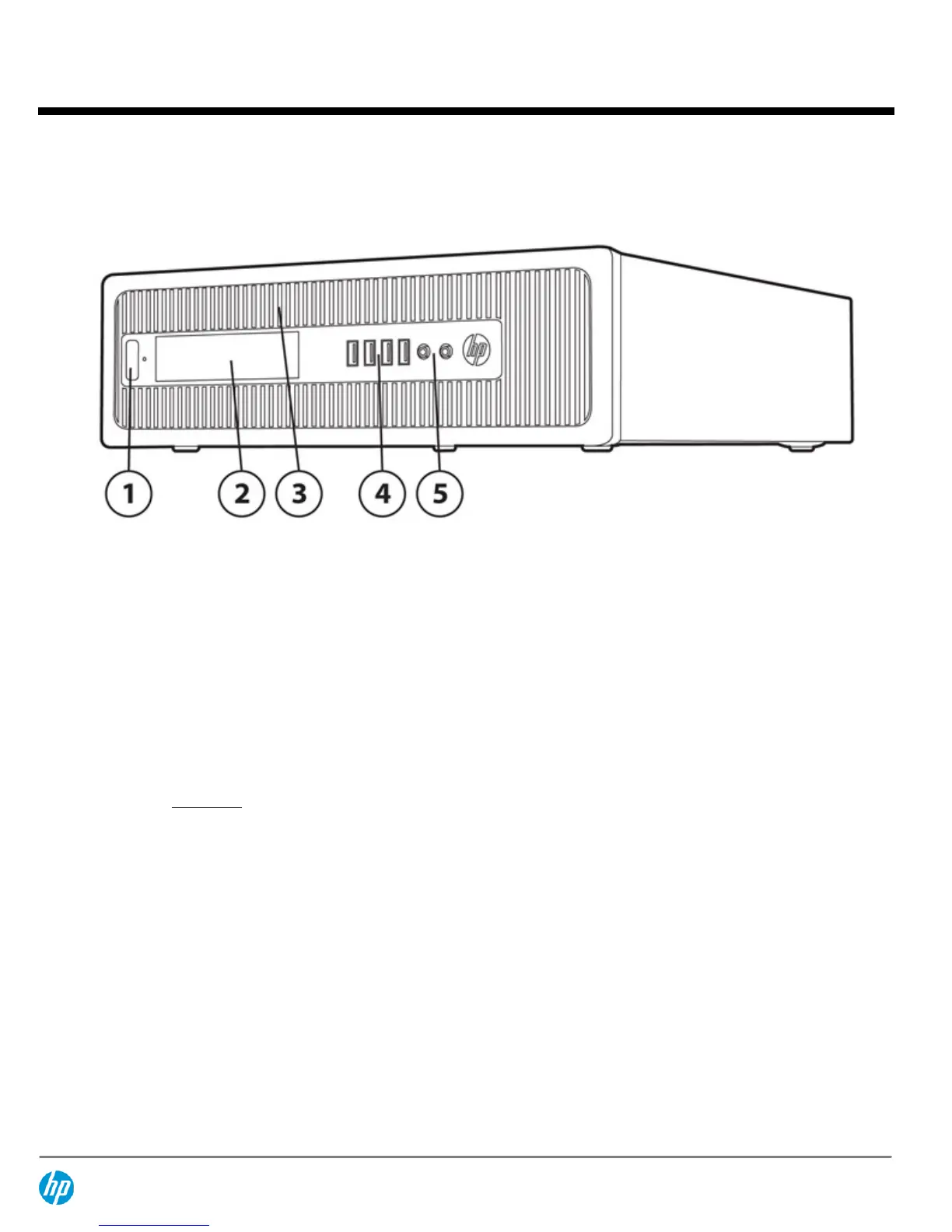

1. Power button and PC status LED
2. 3.5" external drive bay
3. Slimline drive bay supporting an optical disk drive (located behind removable bezel)
4. (2) USB 3.0 ports, (2) USB 2.0 ports
5. 3.5mm headphone output and microphone jack
Not Shown
Slots (2) PCI Express x16 graphics connectors
(2) PCI Express x1 accessory connectors
Bays (1) 2.5" internal storage drive bay
(1) 3.5" internal storage drive bay\
Rear I/O (2) USB 3.0 ports; (4) USB 2.0 ports
(1) VGA video port; (2) DisplayPort with multi-stream video ports
(1) RJ-45 network connector
(1) RS-232 serial port
3.5mm audio in/out jacks
PS/2 keyboard and mouse ports
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview
DA - 14653 North America — Version 5 — July 18, 2013 Page 2
