HP EliteDesk 800 G1 Tower

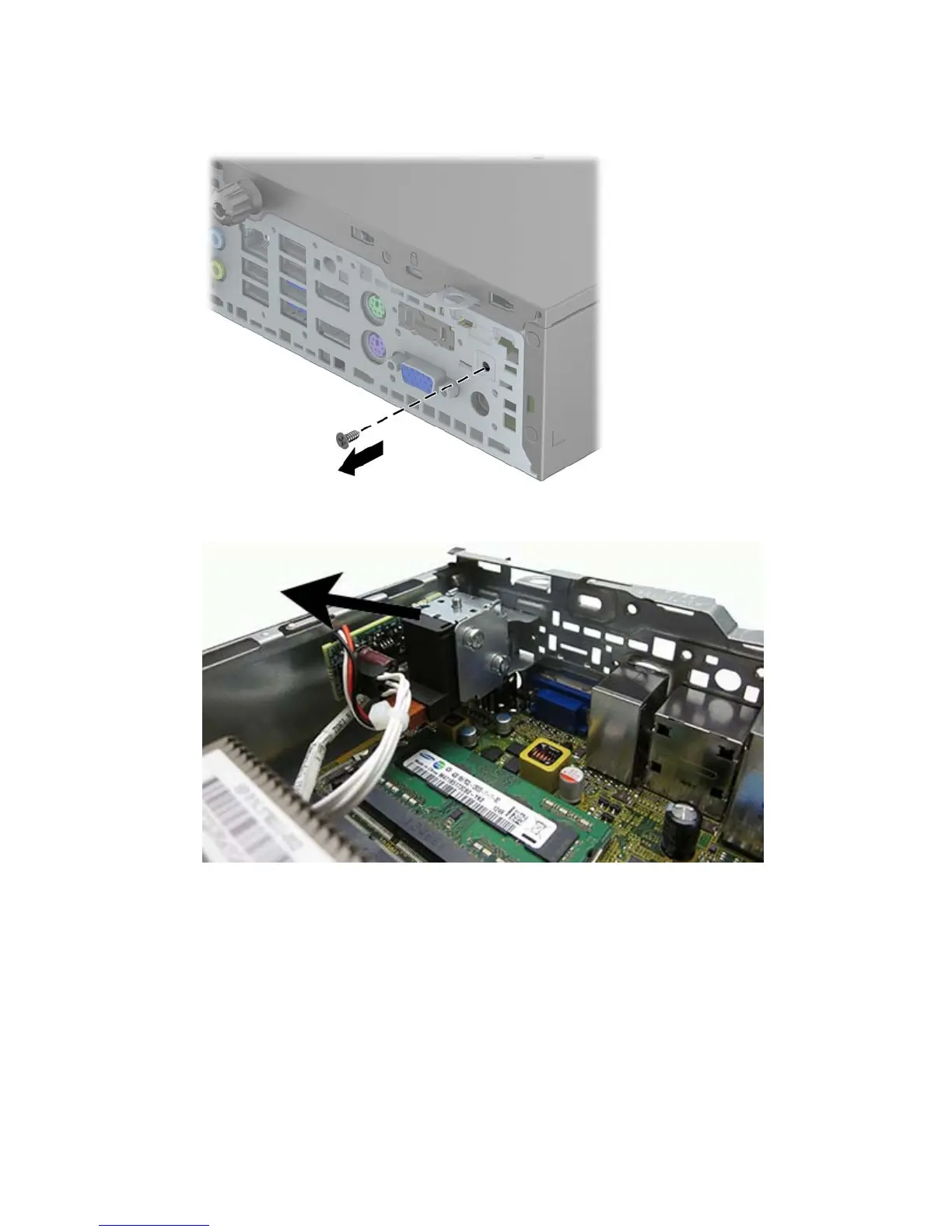

3. From the outside, rear side of the chassis, remove the silver security screw that secures the lock to
the chassis.
4. From the inside of the chassis, lift the lock up to gain access to the system board connector.
Smart Cover Lock (solenoid lock)
161
