HP EliteDesk 800 G4 - Page 4

EL-MF877-00
Template Revision B
Page 4
PSG instructions for this template are available at EL-MF877-01

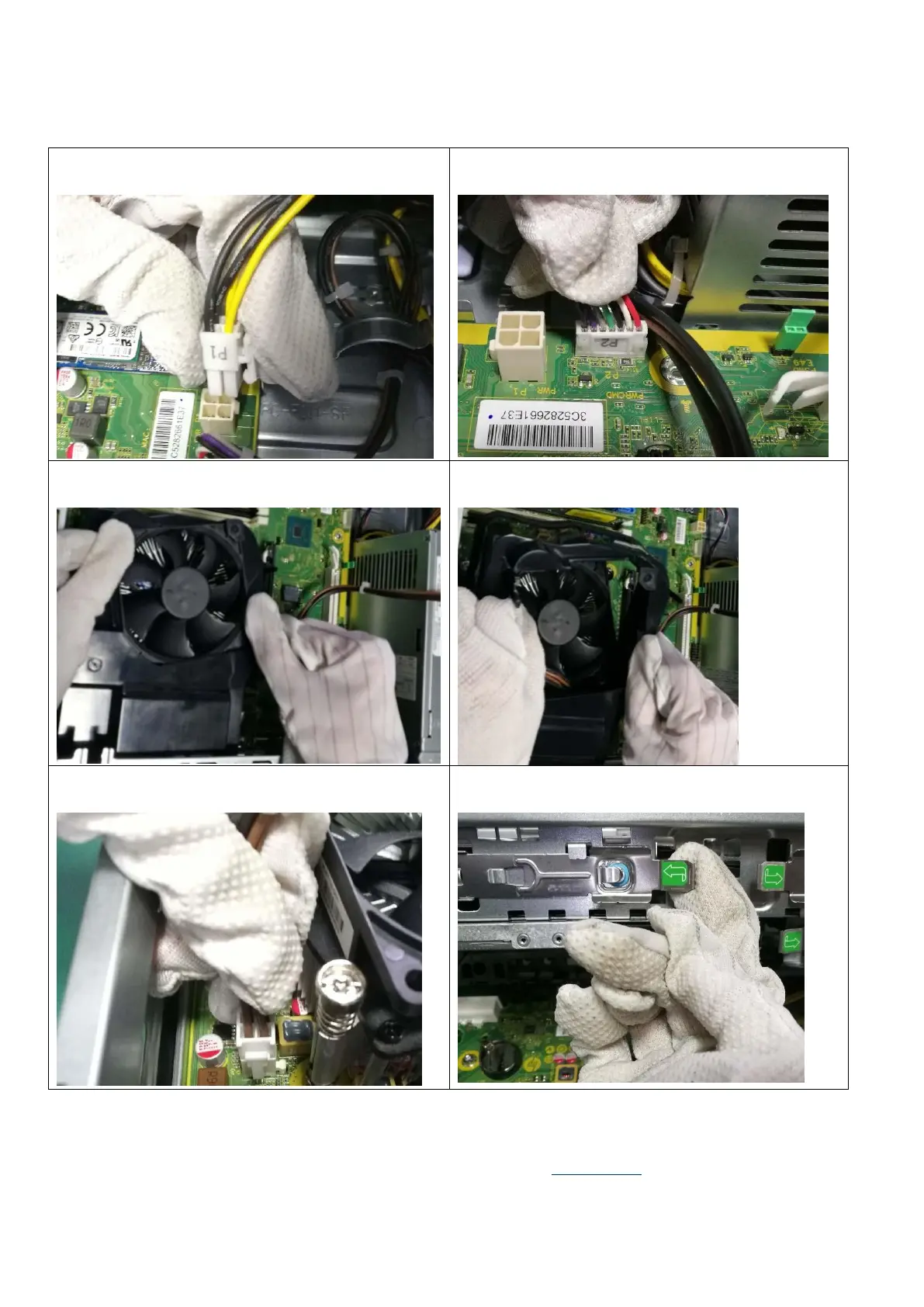

Figure 7 Disconnect P1 power cable from the MB
Figure 8 Disconnect P2 power cable from MB
Figure 9 press the hook and pull up the fan duct
Figure 10 Remove the fan duct
Figure 11 Disconnect P3 Power cable from MB
Figure 12 Pull the HDD latch and rotate the HDD up
