EL-MF877-00
Template Revision B
Page 5
PSG instructions for this template are available at EL-MF877-01

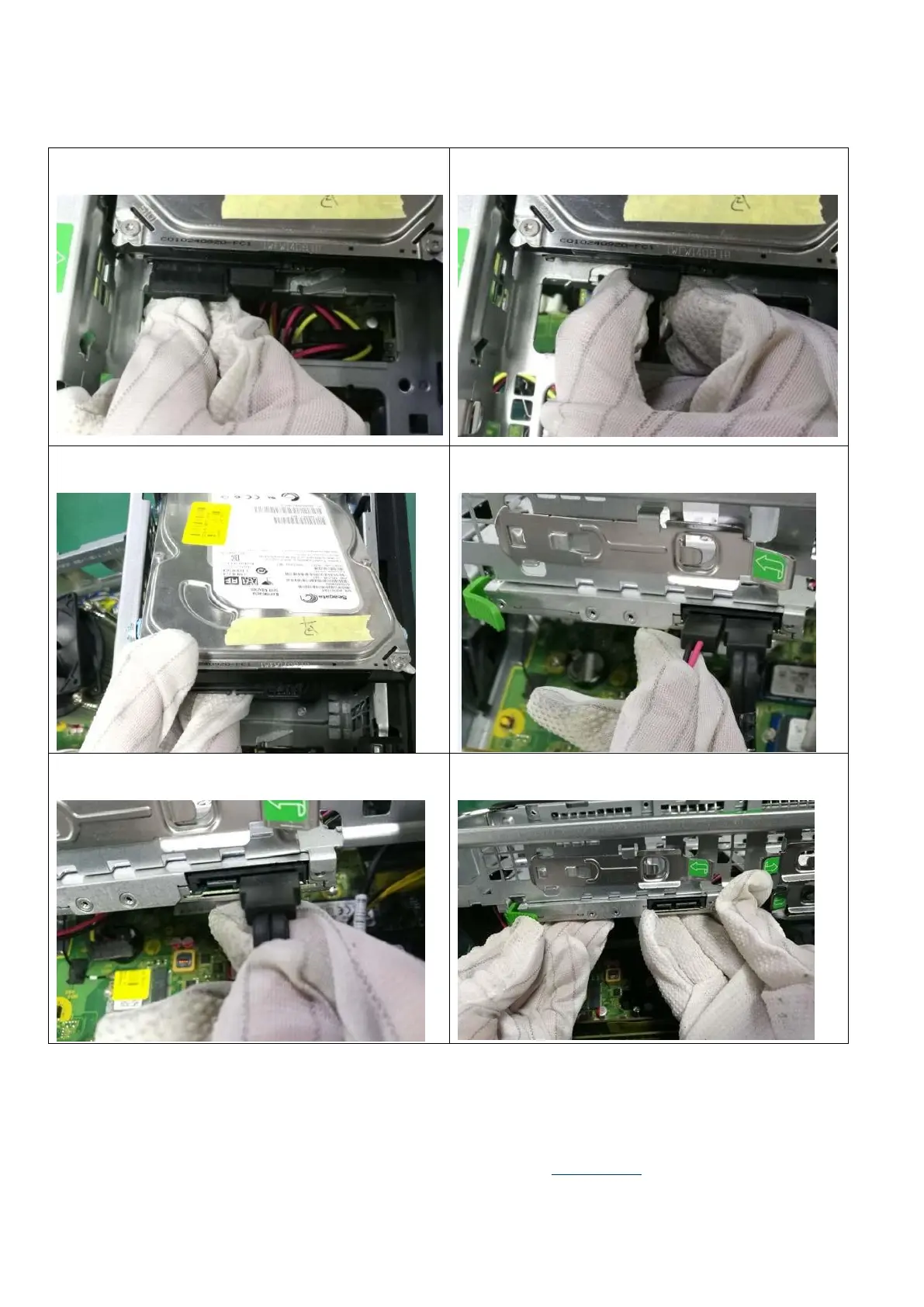

Figure 13 Disconnect power cable from HDD
Figure 14 Disconnect SATA cable from HDD
Figure 15 Remove the HDD from HDD cage
Figure 16 Disconnect power cable from ODD
Figure 17 Disconnect SATA cable from ODD
Figure 18 Press the ODD latch and remove it
