HP EliteOne 800 G3 - Page 7

EL-MF877-00 Page 7
Template Revision B
PSG instructions for this template are available at EL-MF877-01

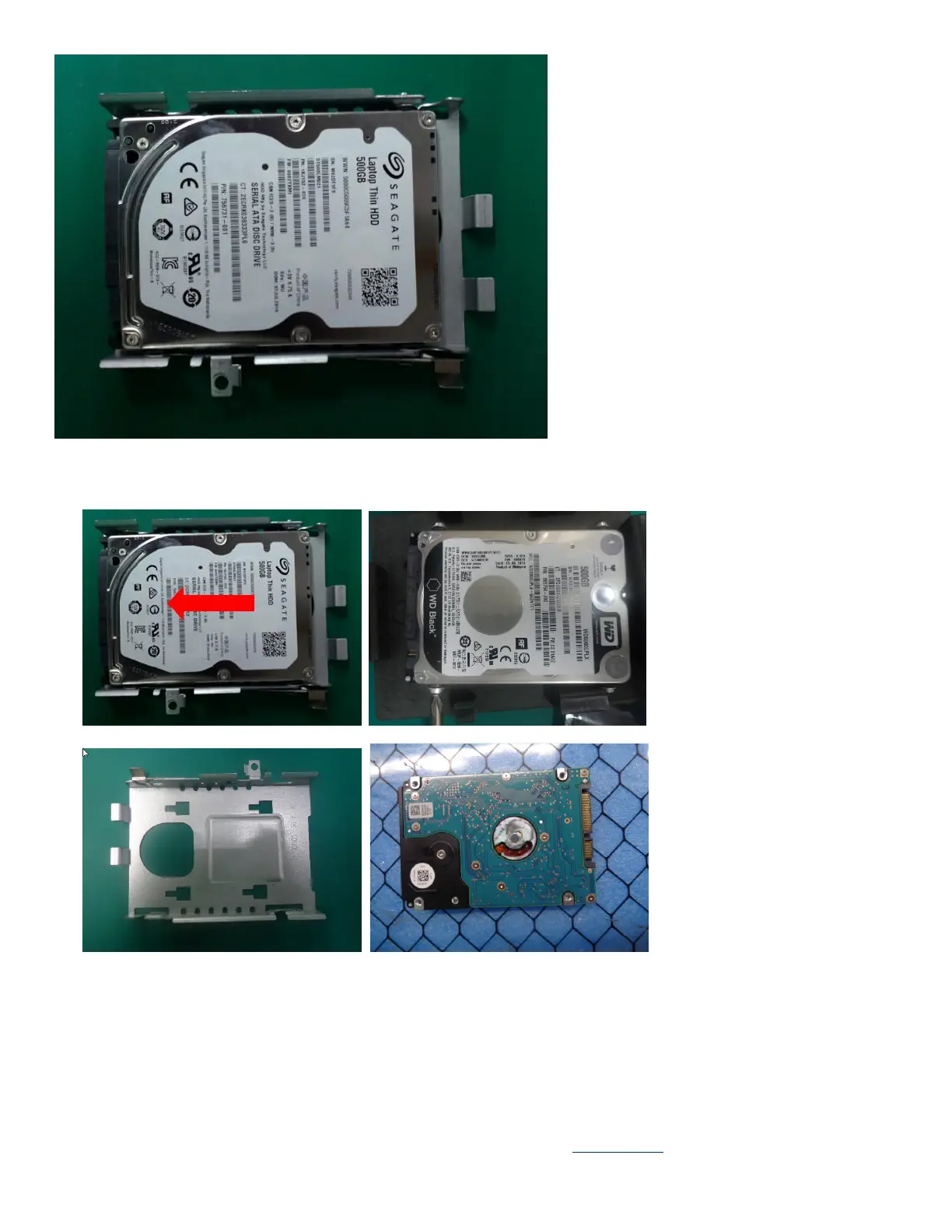

9. Remove HDD from cage , slide HDD out from the cage then release 4 gromet to remove HDD from cage
Tool: Cross(Philips) screwdriver OD 3.0mm
10. Remove ODD , push the ODD latch on red circle location to slide out the ODD
