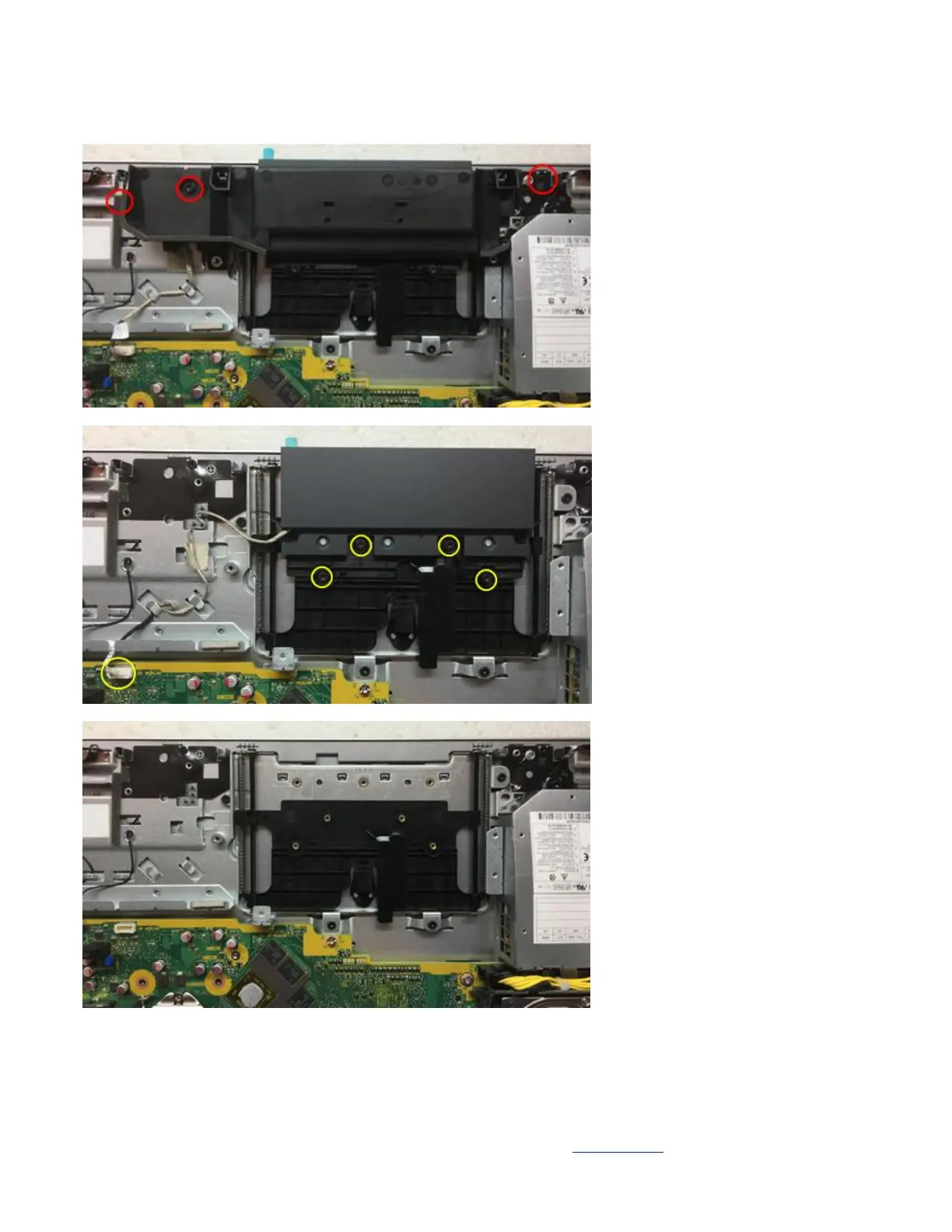

12. Remove Webcam module box , release 3 screws on red circle to remove Fan dust then release 4 screws on
yellow screws and unplug webcam connector on yellow circle location from MB
Tool: Star(Torx) screwdriver OD 3.3mm
Cross(Philips) screwdriver OD 3.0mm
13. Remove Webcam and Dmic , release 3 screws to remove Webcam box cover then remove Webcam and Dmic
