HP ElitePad 1000 G2 - Page 37

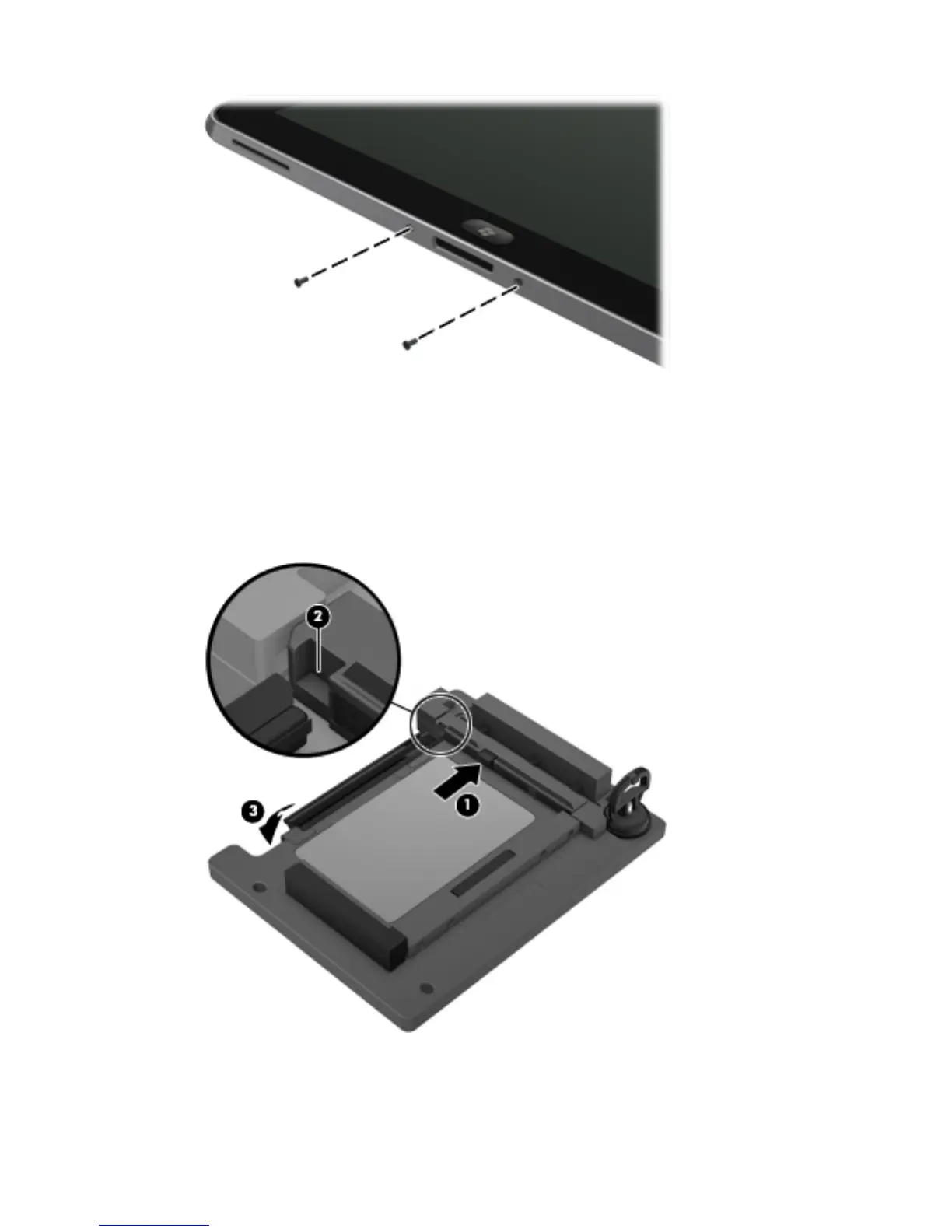

2. Place the HP ElitePad Service Tool on a flat, sturdy surface.
The HP ElitePad Service Tool is available using spare part number 714222-001.
3. Move the HP ElitePad Service Tool retention bar (1) to the left until the notch (2) in the retention bar
allows the retention gate to open.
4. Open the retention gate (3).
Tablet component replacement procedures 29
