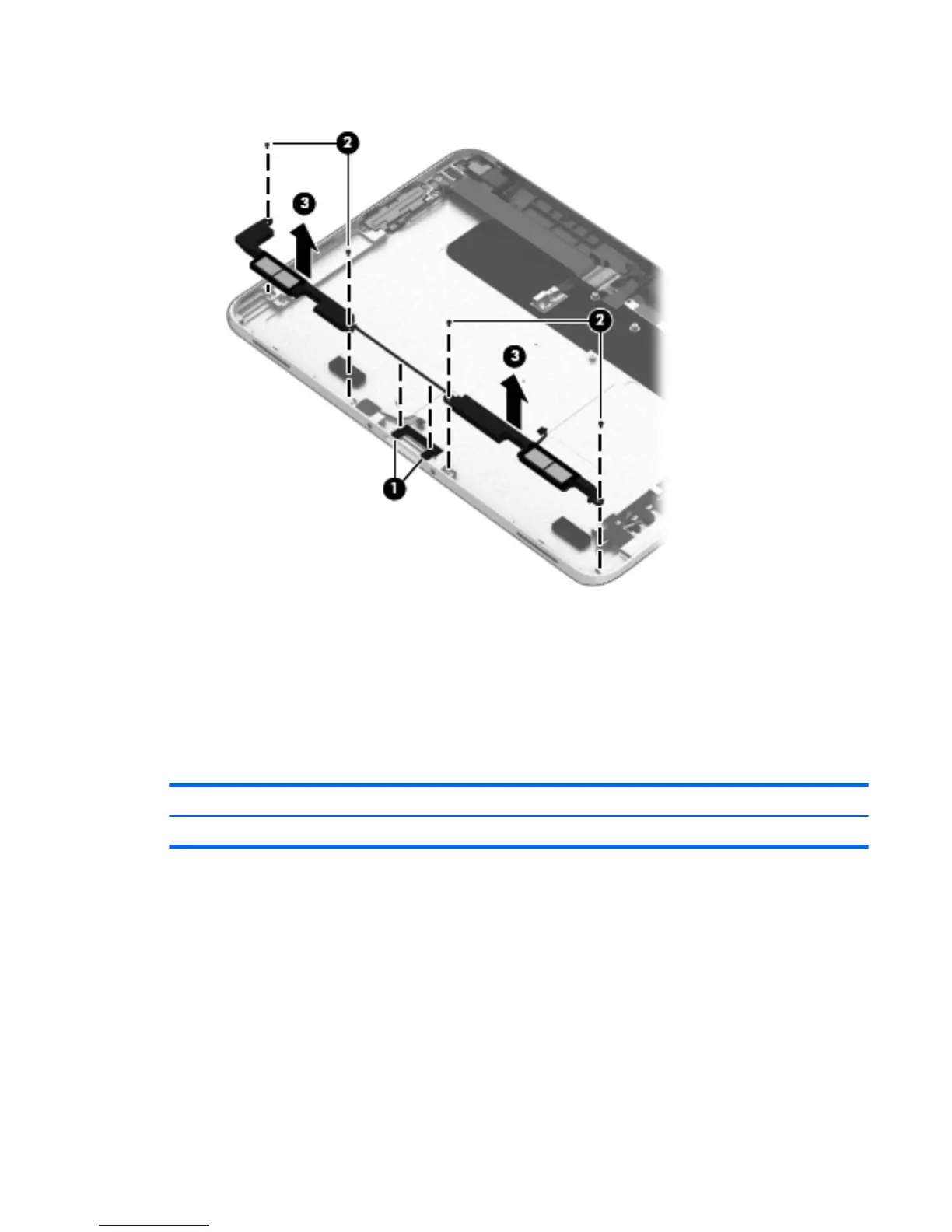

3. Remove the speakers (3).
Reverse this procedure to install the speakers.
Retail Jacket component replacement procedures
There are as many as 31 screws that must be removed, replaced, and/or loosened when servicing the Retail
Jacket. Make special note of each screw size and location during removal and replacement.
Top cap
Description Spare part number
Top cap (includes 4 captive screws, secured by C-rings) 744025-001
Before disassembling the Retail Jacket, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet or the Retail Jacket.
3. Disconnect all external devices from the Retail Jacket.
Remove the top cap:
1. Place the Retail Jacket face down on the work surface with the top cap toward you.
2. Loosen the 4 captive screws (1) that secure the top cap to the Retail Jacket.
Retail Jacket component replacement procedures 63
