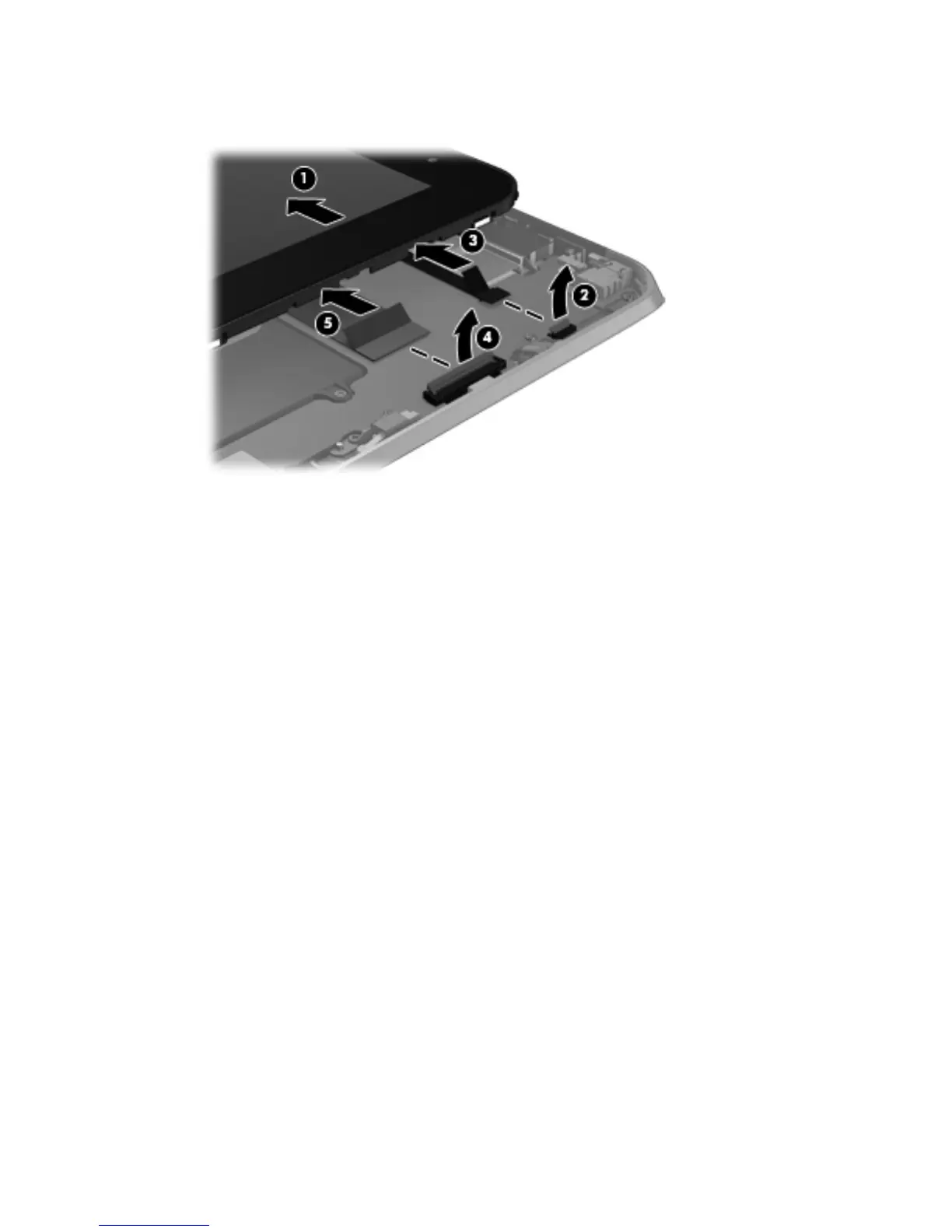

19. Release the ZIF connector (4) to which the LVDS cable is attached, and then disconnect the LVDS cable
(5) from the system board.
20. Remove the display assembly and cables.
21. If it is necessary to replace the display assembly cables:
a. Turn the display assembly upside down, with the bottom toward you.
b. Detach the TouchScreen cable (1) from the surface of the display assembly. (The TouchScreen
cable is attached to the display assembly with double-sided adhesive.)
c. Release the ZIF connector (2) to which the TouchScreen cable is attached, and then disconnect the
TouchScreen cable (3) from the display assembly.
d. Detach the display LVDS cable (4) from the surface of the display assembly. (The display LVDS
cable is attached to the display assembly with double-sided adhesive.)
Tablet component replacement procedures 33
