HP ElitePad 1000 G2 - Page 60

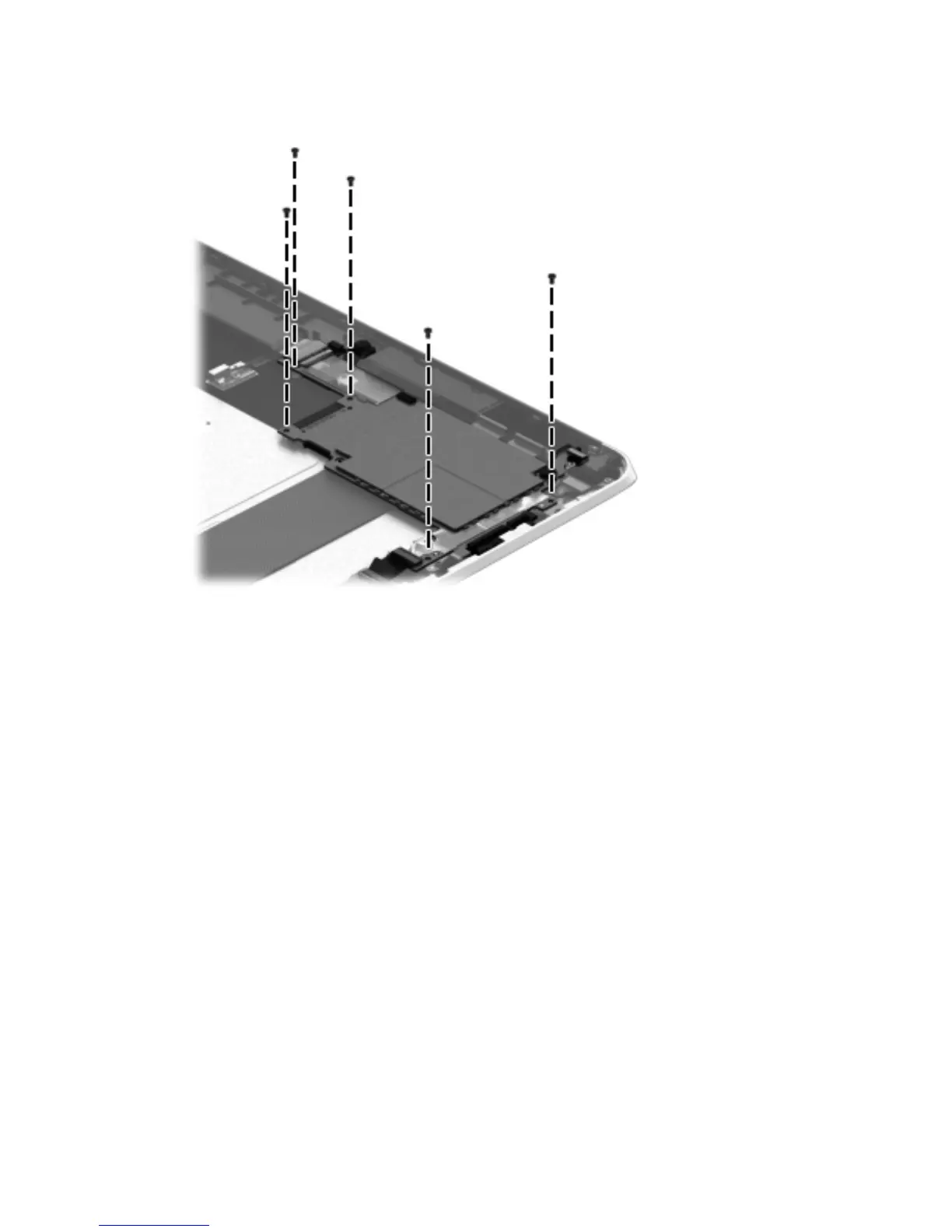

4. Remove the five Phillips PM1.3×2.0 screws that secure the battery to the bottom cover.
5. Lift the top edge of the system board (1) and swing it up and forward until it rests upside down above
the tablet.
6. Remove the two Phillips PM1.3×1.5 broad head screws (2) that secure the docking connector cable to
the system board.
52 Chapter 5 Removal and replacement procedures
