Battery connector board (see Battery connector board on page 71)
●
System board (see System board on page 72)
Remove the front cover:
1. Position the Retail Jacket with the top toward you.

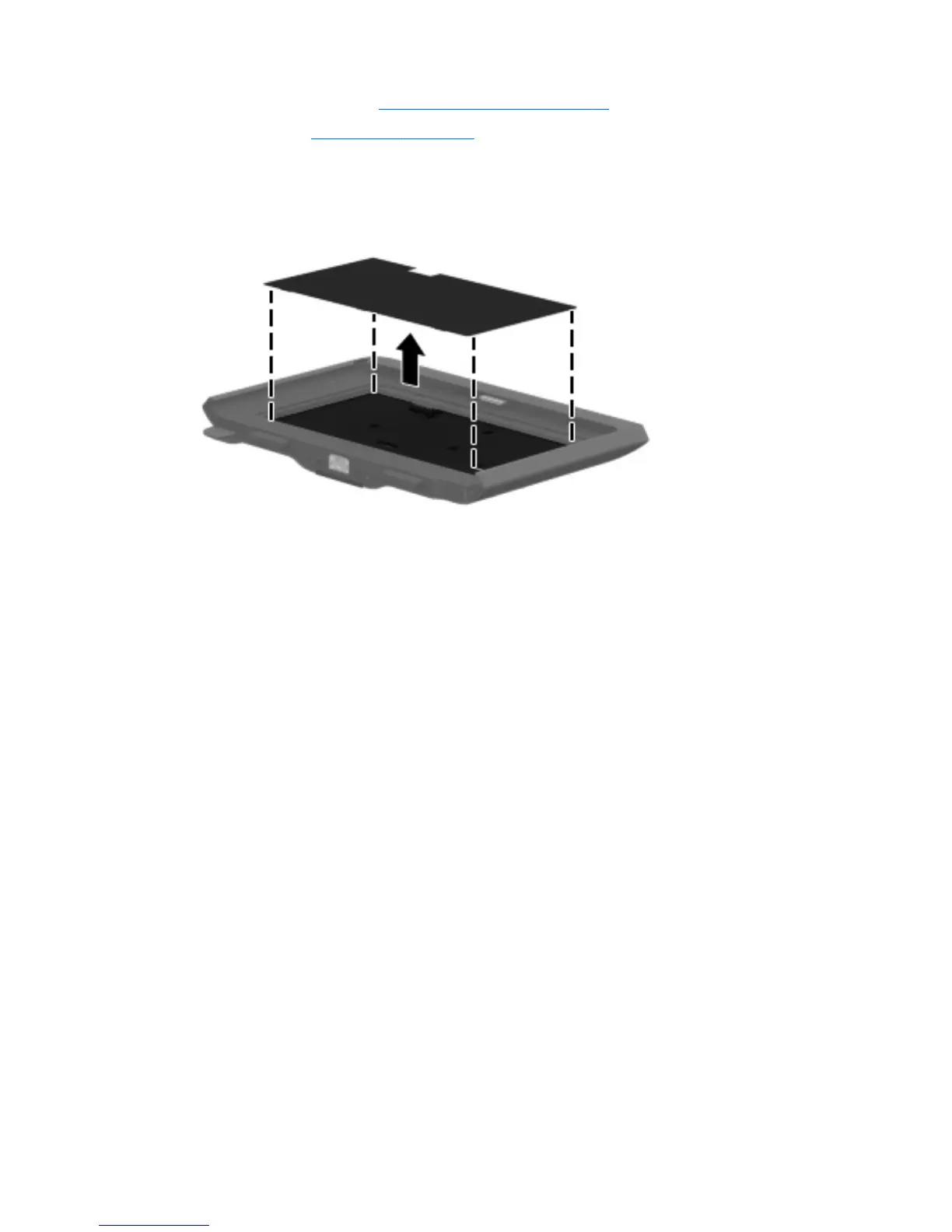

2. Remove the adhesive-backed liner that covers the front cover.
3. Release the ZIF connector (1) to which the left-side credit card reader board cable is attached, and then
disconnect the left-side credit card reader board cable (2) from the left-side credit card reader board.
66 Chapter 5 Removal and replacement procedures
