767367-001: FHD touch screen models

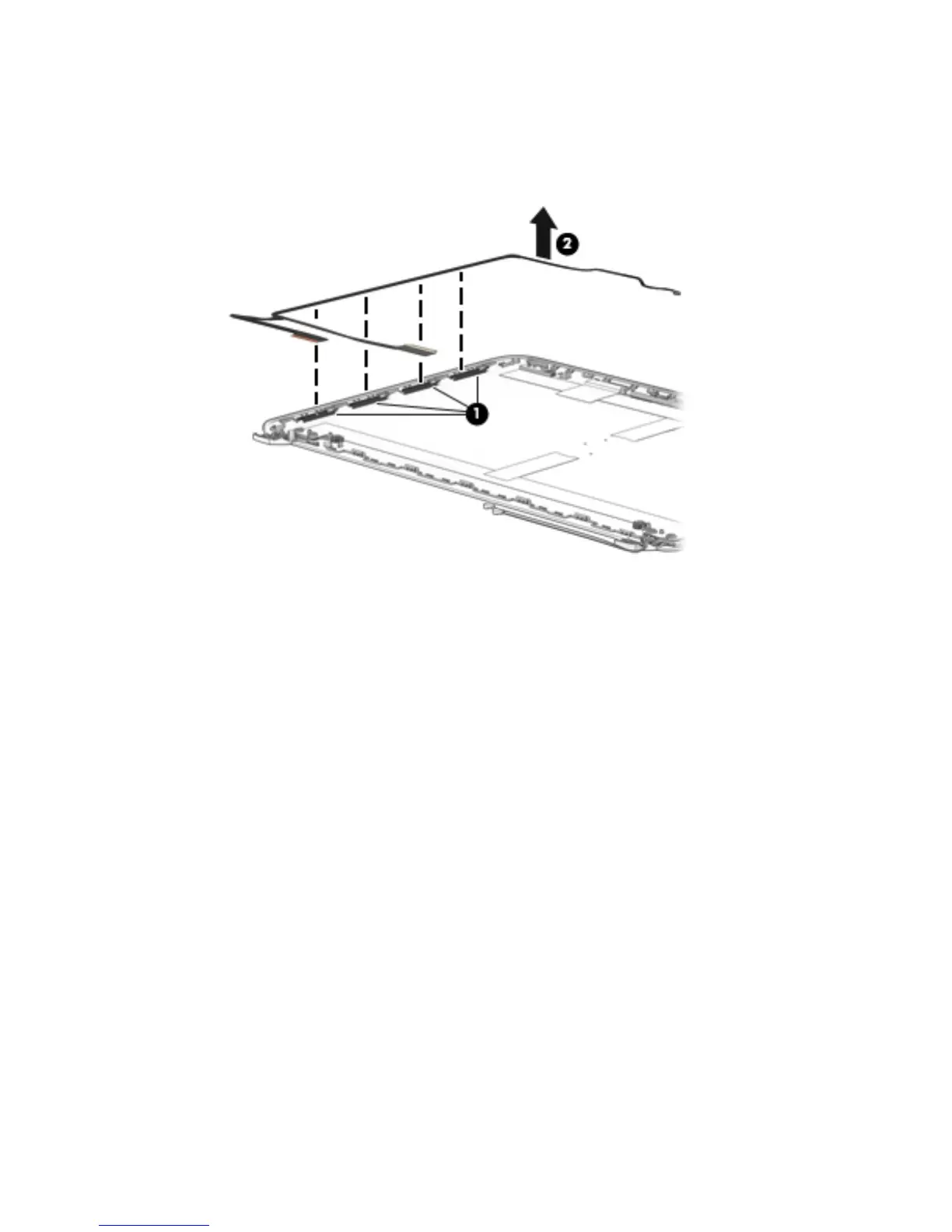

a. Release the display panel cable from the clips (1) and routing channel built into the
display enclosure.
b. Carefully release the cable from the channel guides, and remove the display panel cable (2).
8. If it is necessary to replace the wireless antenna cables and transceivers:
The antennas are available using spare part number 767237-001 for non-touch models and
767238-001 for touch models.
a. Release the wireless antenna transceivers (1) from the display back cover. (The wireless antenna
transceivers are attached to the display back cover with double-sided tape.)
72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
