b. Remove the wireless antenna cables and transceivers (2).

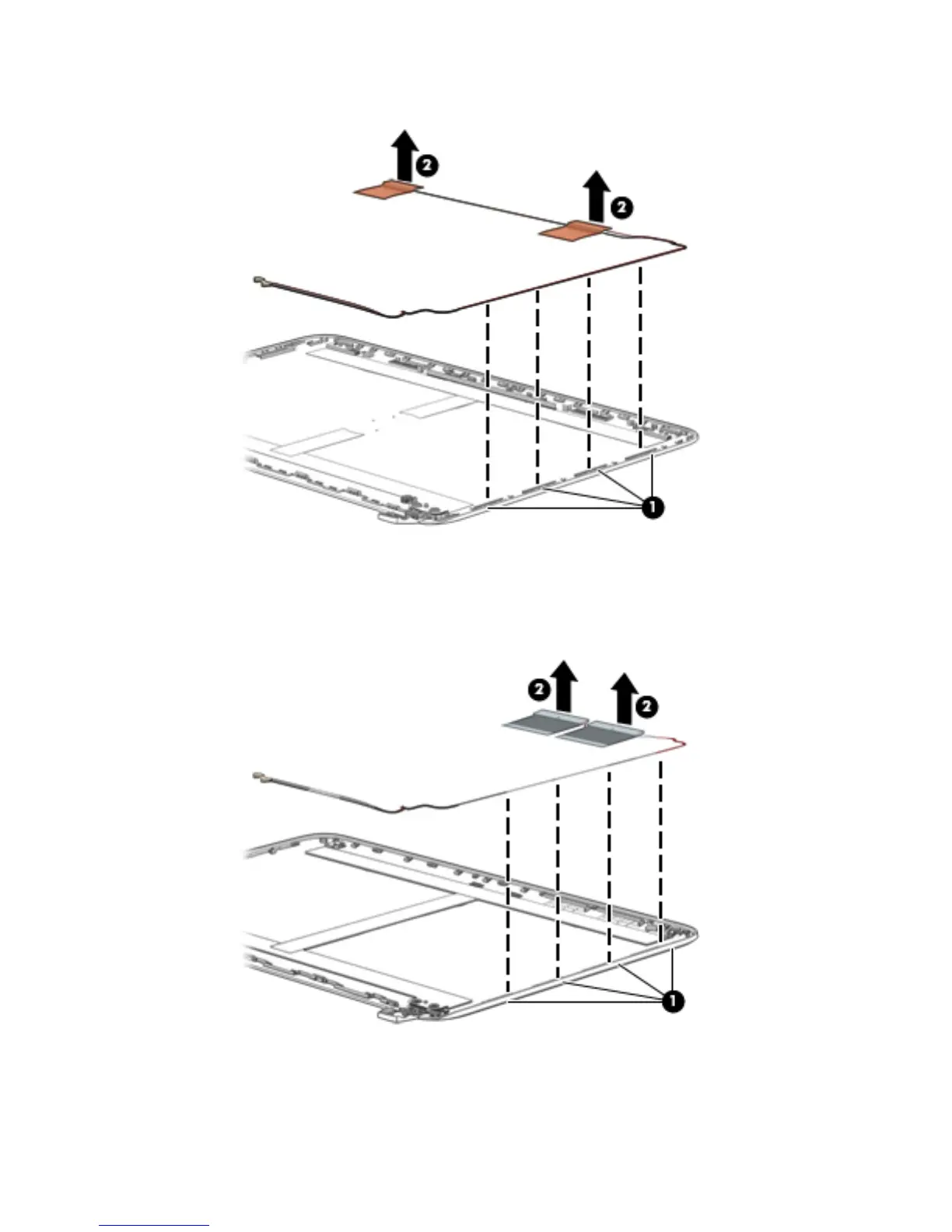

9. If it is necessary to replace the wireless antenna cables and transceivers on a touch panel:
a. Release the wireless antenna transceivers (1) from the display back cover. (The wireless antenna
transceivers are attached to the display back cover with double-sided tape.)
b. Remove the wireless antenna cables and transceivers (2).
Reverse this procedure to install the display assembly.
Component replacement procedures 73
