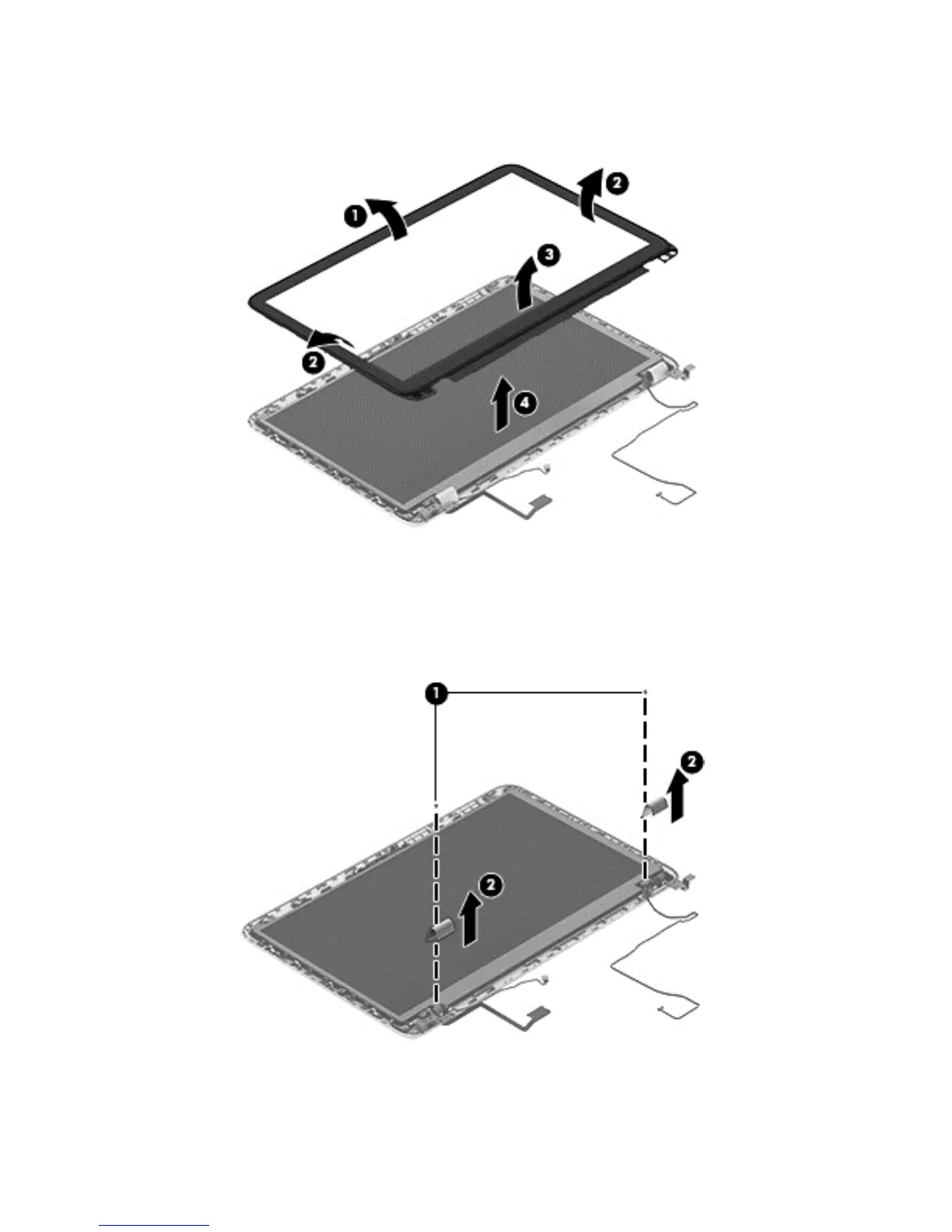

c. Remove the display bezel (4).
The display bezel is available using spare part number 720535-001.
9. If it is necessary to replace the display hinge cover:
a. Remove the four Phillips PM2.0×2.9 screws (1) that secure the display hinge covers to the
display enclosure.
b. Remove the display hinge covers (2).
The display hinge covers are available using spare part number 720548-001.
Component replacement procedures 59
