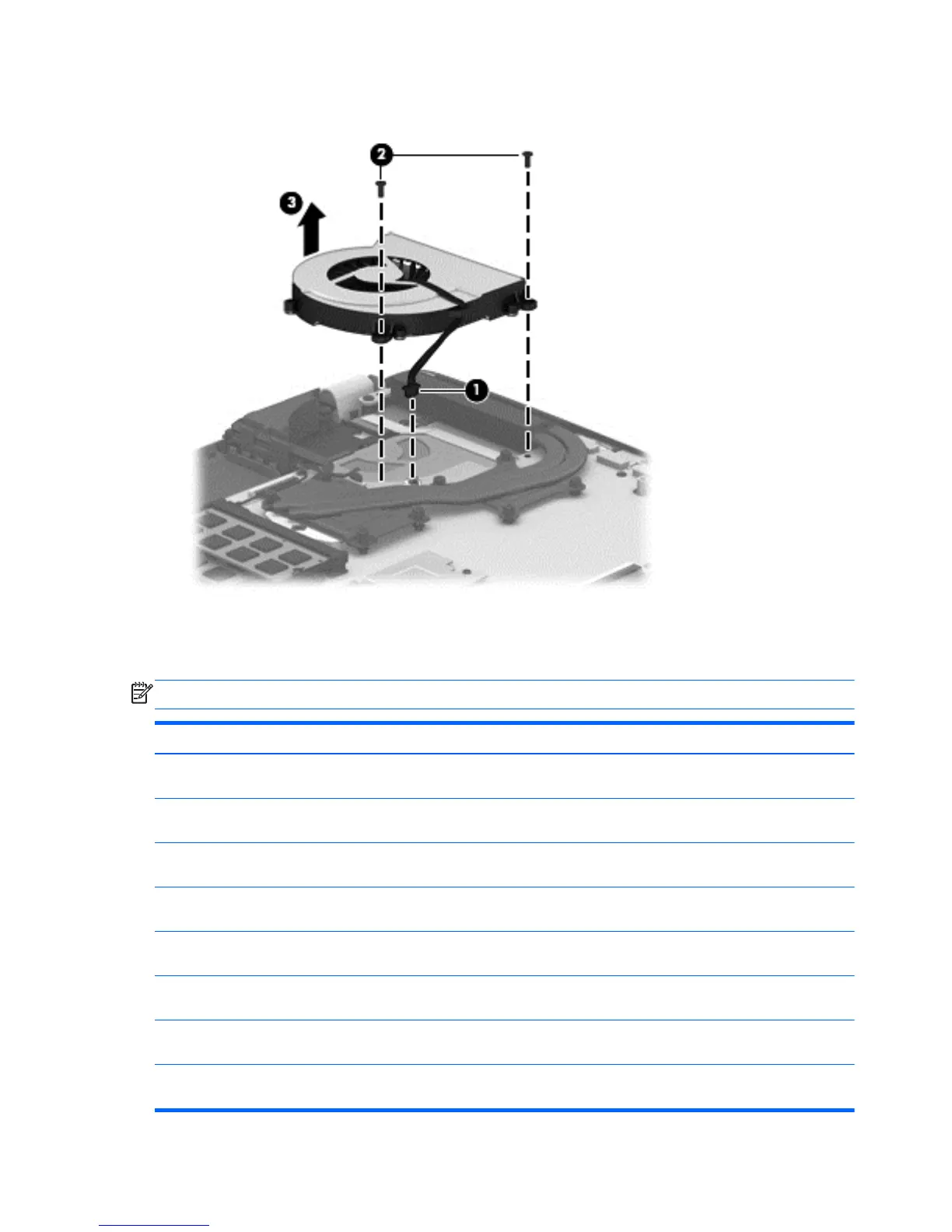

3. Remove the fan (3).
Reverse this procedure to install the fan.
System board
NOTE: The system board spare part kit includes replacement thermal material.
Description Spare part number
For use on computer models equipped with an AMD processor, a graphics subsystem with
discrete memory, and the Windows Professional operating system
720578-601
For use on computer models equipped with an AMD processor, a graphics subsystem with
discrete memory, and the Windows Standard operating system
720578-501
For use on computer models equipped with an AMD processor, a graphics subsystem with
UMA memory, and the Windows Professional operating system
720577-601
For use on computer models equipped with an AMD processor, a graphics subsystem with
UMA memory, and the Windows Standard operating system
720577-501
For use on computer models equipped with the Intel HM87 chipset, the GeForce 750M graphics
subsystem, and the Windows Standard operating system
720569-501
For use on computer models equipped with the Intel HM87 chipset, the GeForce 740M graphics
subsystem, and the Windows Professional operating system
720566-601
For use on computer models equipped with the Intel HM87 chipset, the GeForce 740M graphics
subsystem, and the Windows Standard operating system
720566-501
For use on computer models equipped with the Intel HM87 chipset, the GeForce 740M graphics
subsystem, and the Linux operating system
720566-001
64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
