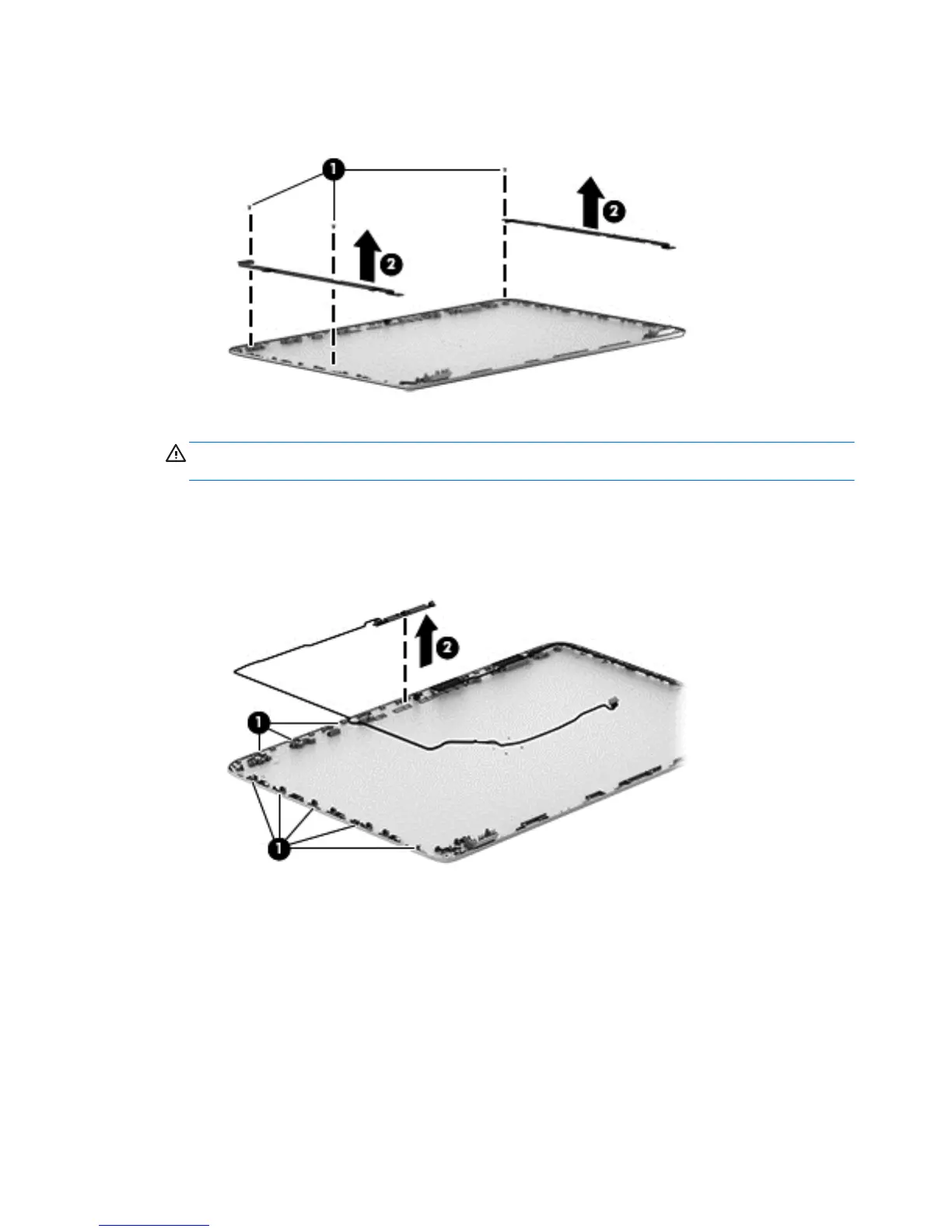

d. Remove the left and right display hinge brackets (2).
The display hinge brackets are available using spare part number 720548-001.
13. If it is necessary to replace the webcam/microphone module:
CAUTION: Handle the webcam/microphone module with caution. This module has a
thin profile and is susceptible to damage when not handled carefully.
a. Release the webcam/microphone module cable (1) from the clips and routing channel built
into the left and top edges of the display enclosure.
b. Detach the webcam/microphone module (2) from the display enclosure. (The webcam/
microphone module is attached to the display enclosure with double-sided adhesive.)
c. Remove the webcam/microphone module.
The webcam/microphone module is available using spare part number 720273-001, and
includes the webcam/microphone module cable.
14. If it is necessary to replace the wireless antenna:
a. Release the wireless antenna cables from the clips (1) and routing channel built into the
right edge of the display enclosure.
62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
