HP Envy 17 Series - Page 37

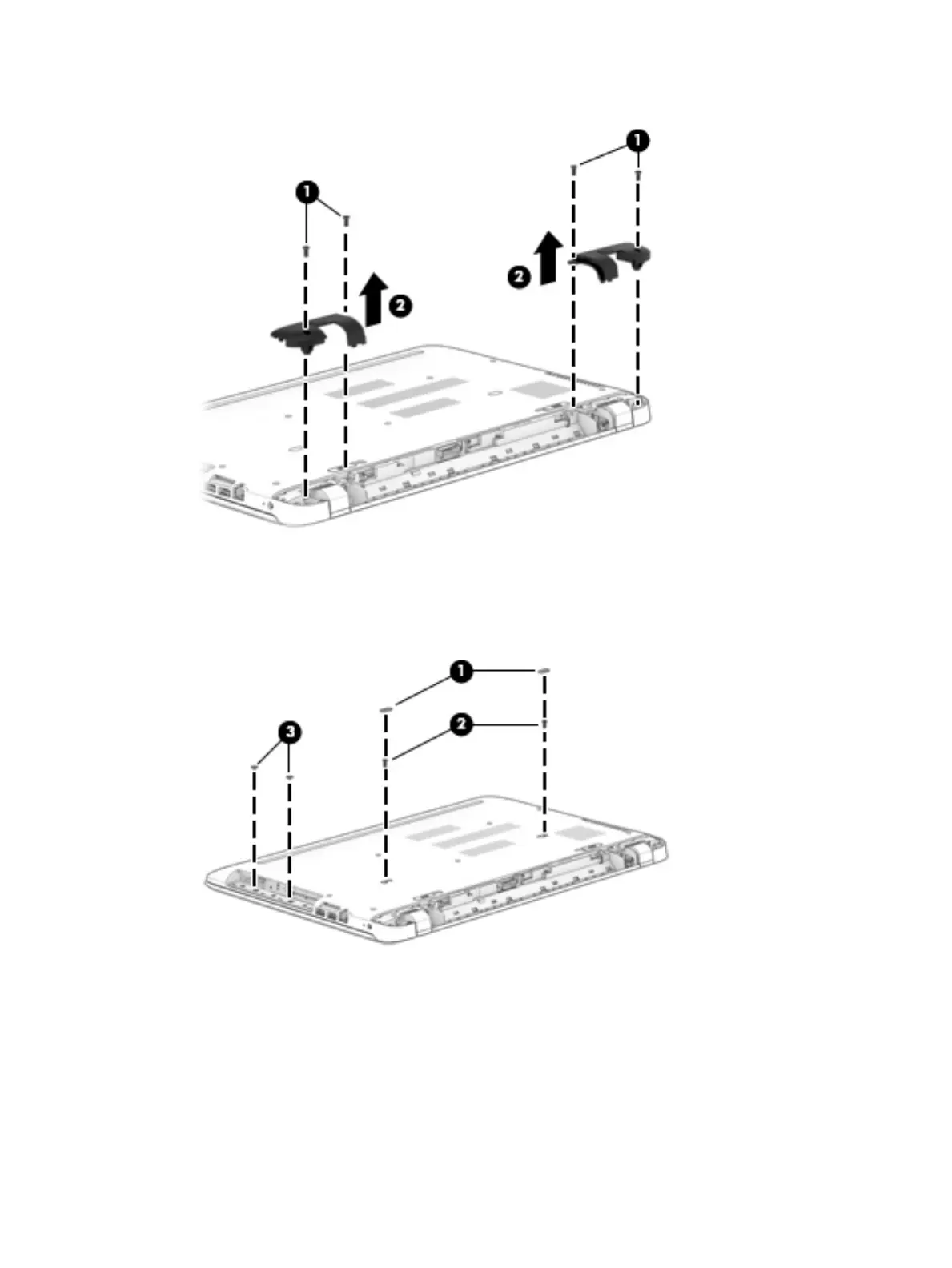

3. Remove the hinge covers (2).
4. Remove the two screw covers (1).
5. Remove the two Phillips PM2.5×6.5 screws (2).
6. Remove the two Phillips PM2.0×2.0 broad head screws from the optical drive bay (3).
HP
Condential
Component replacement procedures 29
