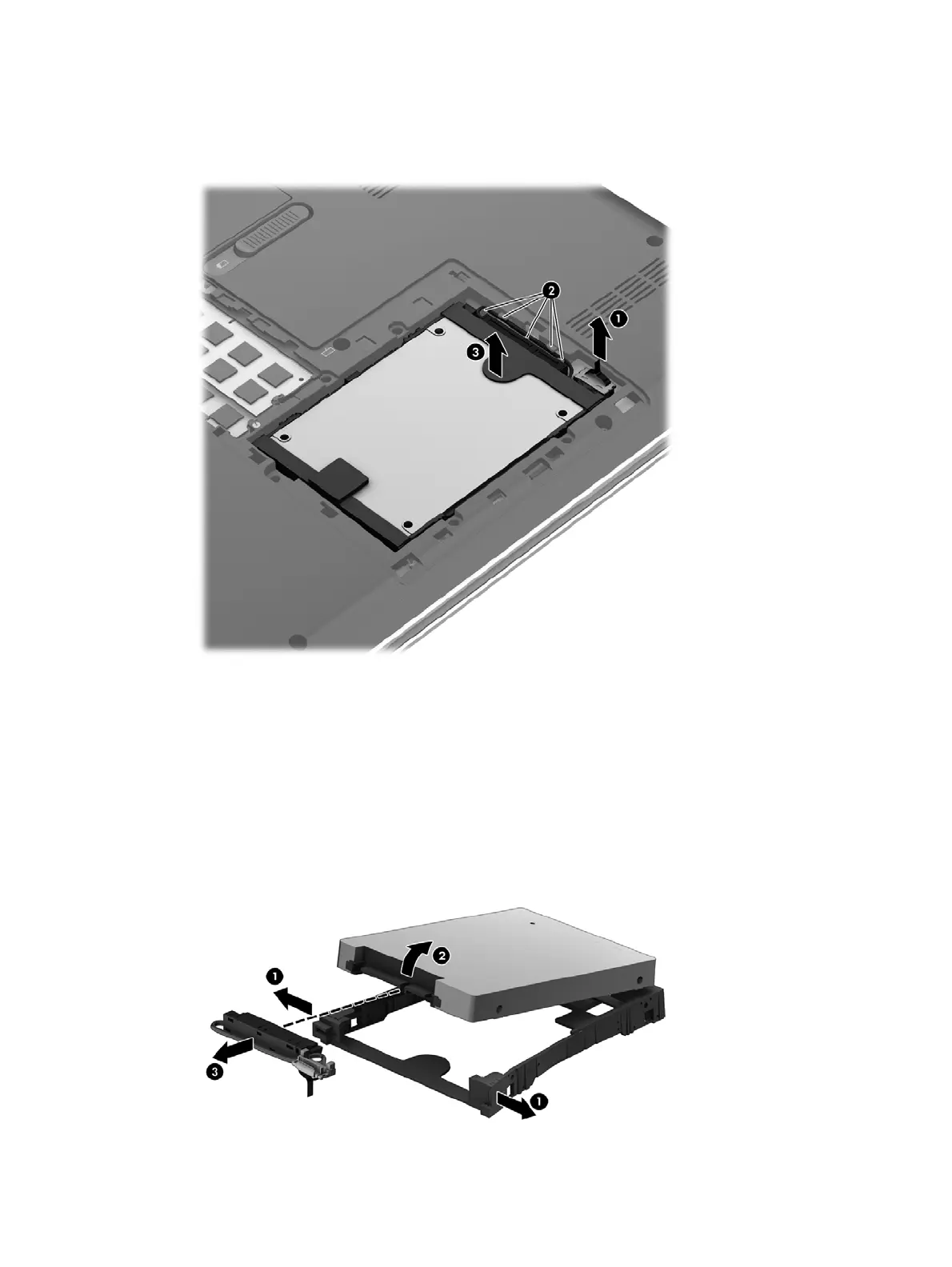

6. Remove the four Phillips PM2.0×4.5 screws (2) that secure the hard drive to the computer.
7. Use the hard drive tab (3) to remove the hard drive by lifting it straight up and away from
the computer.
8. If it is necessary to disassemble the hard drive, perform the following steps:
a. Position the hard drive with the connector toward you.
b. Disconnect the hard drive connector cable (1) from the hard drive.
c. Remove the four Phillips PM3.0×3.3 screws (2) that secure the hard drive bracket to the
hard drive.
d. Remove the hard drive bracket (3) from the hard drive.
The hard drive bracket, hard drive connector cable, and screws are available in the Hard
Drive Hardware Kit, spare part number 698081-001.
Component replacement procedures 33
