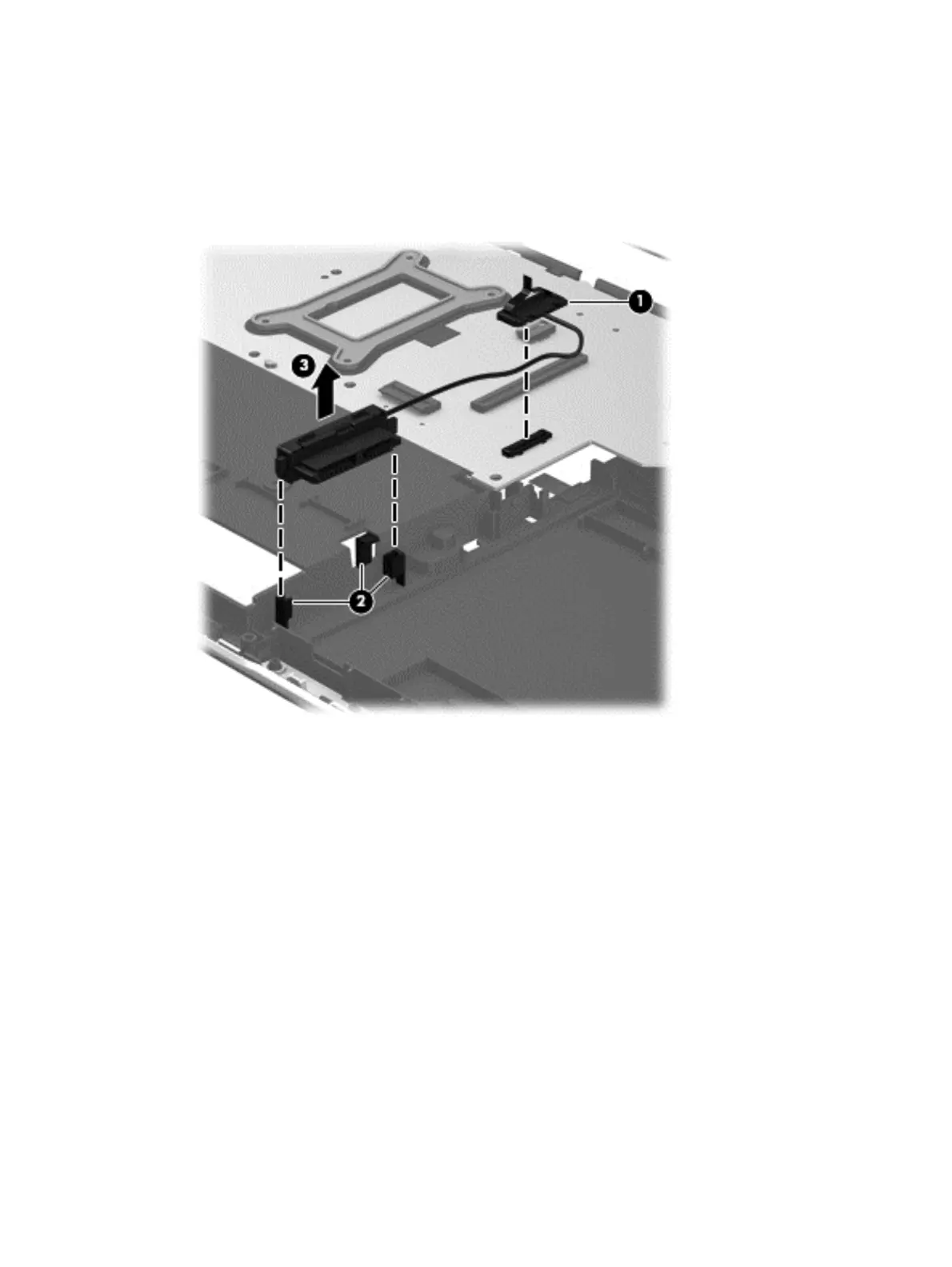

Remove the optical drive connector cable:
1. Disconnect the optical drive connector cable (1) from the system board.
2. Release the three clips (2) built into the base enclosure that secure the optical drive connector to
the base enclosure.
3. Remove the optical drive connector cable (3).
Reverse this procedure to install the optical drive connector cable.
Component replacement procedures 53
