Remove the system board:

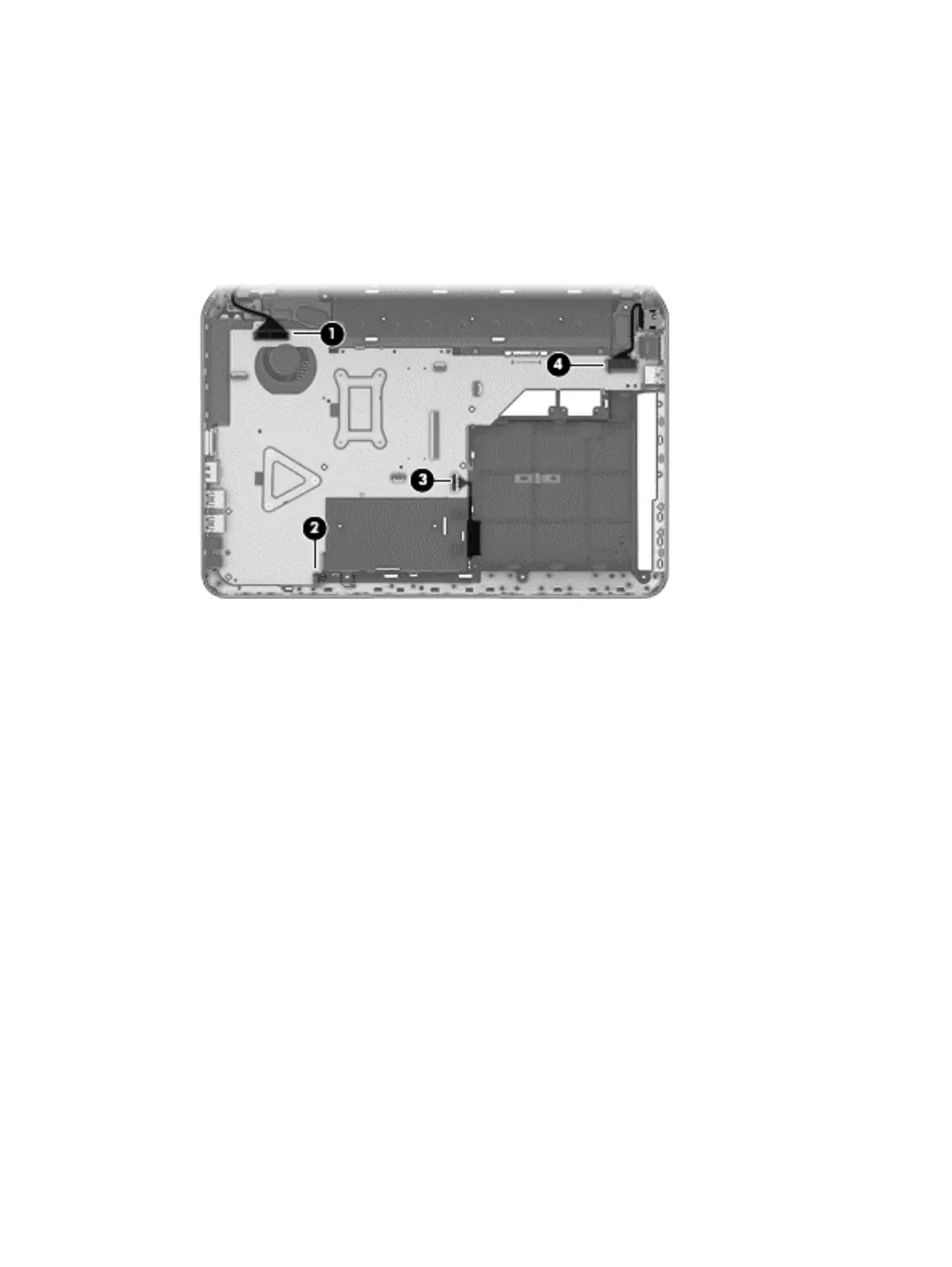

1. Disconnect the following cables from the system board:
(1) Display panel cable
(2) Speaker cable
(3) Optical drive connector cable
(4) Power connector cable
2. Remove the three Phillips PM2.0×5.5 screws (1) that secure the system board to the
base enclosure.
3. Lift the right side of the system board (2) until it rests at an angle.
Component replacement procedures 55
