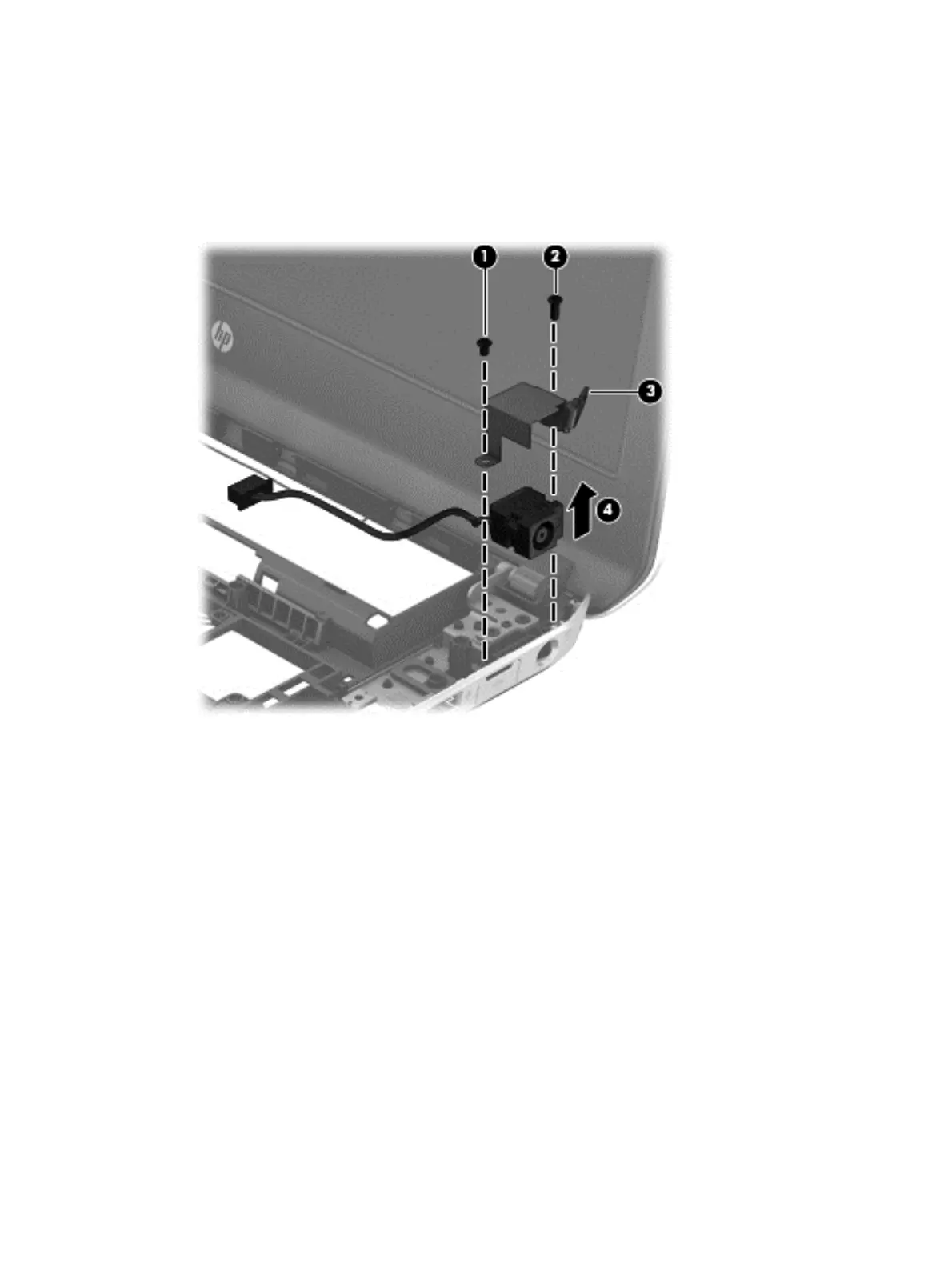

Remove the power connector cable:
1. Remove the Phillips PM2.0×3.5 screw (1) and the Phillips PM2.0×5.5 screw (2) that secure the
power connector and bracket to the base enclosure.
2. Remove the power connector bracket (3).
3. Remove the power connector cable (4) from the clip built into the base enclosure.
Reverse this procedure to install the power connector cable.
