HP ENVY x2 Maintenance And Service Guide

Audio/SD board
Description Spare part number
Audio/SD board (includes cable) 783102-001
Before removing the audio/SD board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Disconnect the tablet from the keyboard base (see
Connecting the tablet to the keyboard base
on page 28).
5. Remove the rear cover (see
Rear cover on page 29).
6. Disconnect the battery cable from the system board.

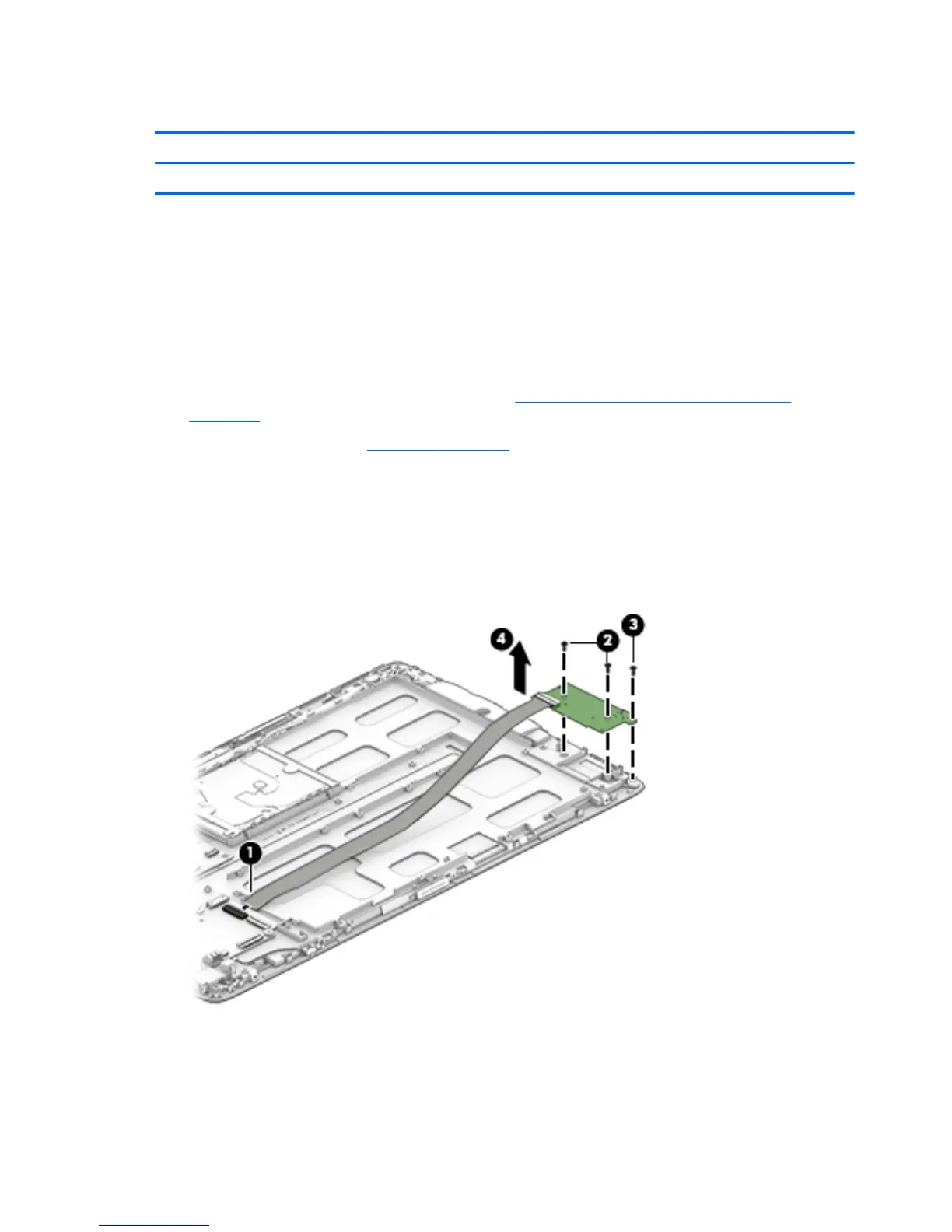

To remove the audio/SD board:
1. Disconnect the cable from the system board (1).
2. Remove the three Phillips PM2.5×5.0 screws (2) that secure the board to the tablet.
3. Lift the audio/SD board and cable from the tablet (3).
Reverse this procedure to install the audio/SD board.
34 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP ENVY x2 Specifications

General

Stepping	C0
Processor cache	1 MB
Processor cores	2
System bus rate	- GT/s
Processor family	Intel Atom®
Processor series	Intel Atom Z2700 Series
Processor socket	FC-MB4760
Processor threads	4
Processor codename	Cloverview
Processor frequency	1.8 GHz
Processor cache type	L2
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
Processor operating modes	32-bit
ECC supported by processor	No
Thermal Design Power (TDP)	- W
Motherboard chipset	-
Internal memory	2 GB
Memory clock speed	533 MHz
Memory form factor	On-board
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 2 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Card reader integrated	Yes
Total storage capacity	64 GB
Compatible memory cards	SD
Number of SSDs installed	1
Display surface	Matt
Display diagonal	11.6 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Discrete graphics card model	Not available
Audio system	Beats Audio
Front camera resolution (numeric)	8 MP
Data network	Not supported
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Charging port type	DC-in jack
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Operating system installed	Windows 8
Form factor	Convertible (Detachable)
Product type	Hybrid (2-in-1)
Product color	Silver
Housing material	Metal
Country of origin	China
Processor code	SR0Z4
Processor ARK ID	70105
Processor package size	14 x 14 mm
Battery life (max)	7 h
Number of battery cells	2+2
AC adapter power	20 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR

Weight and Dimensions

Depth	206 mm
Width	303 mm
Height	19 mm
Weight	1390 g
