HP Fortis 11 G10 Chromebook - Page 46

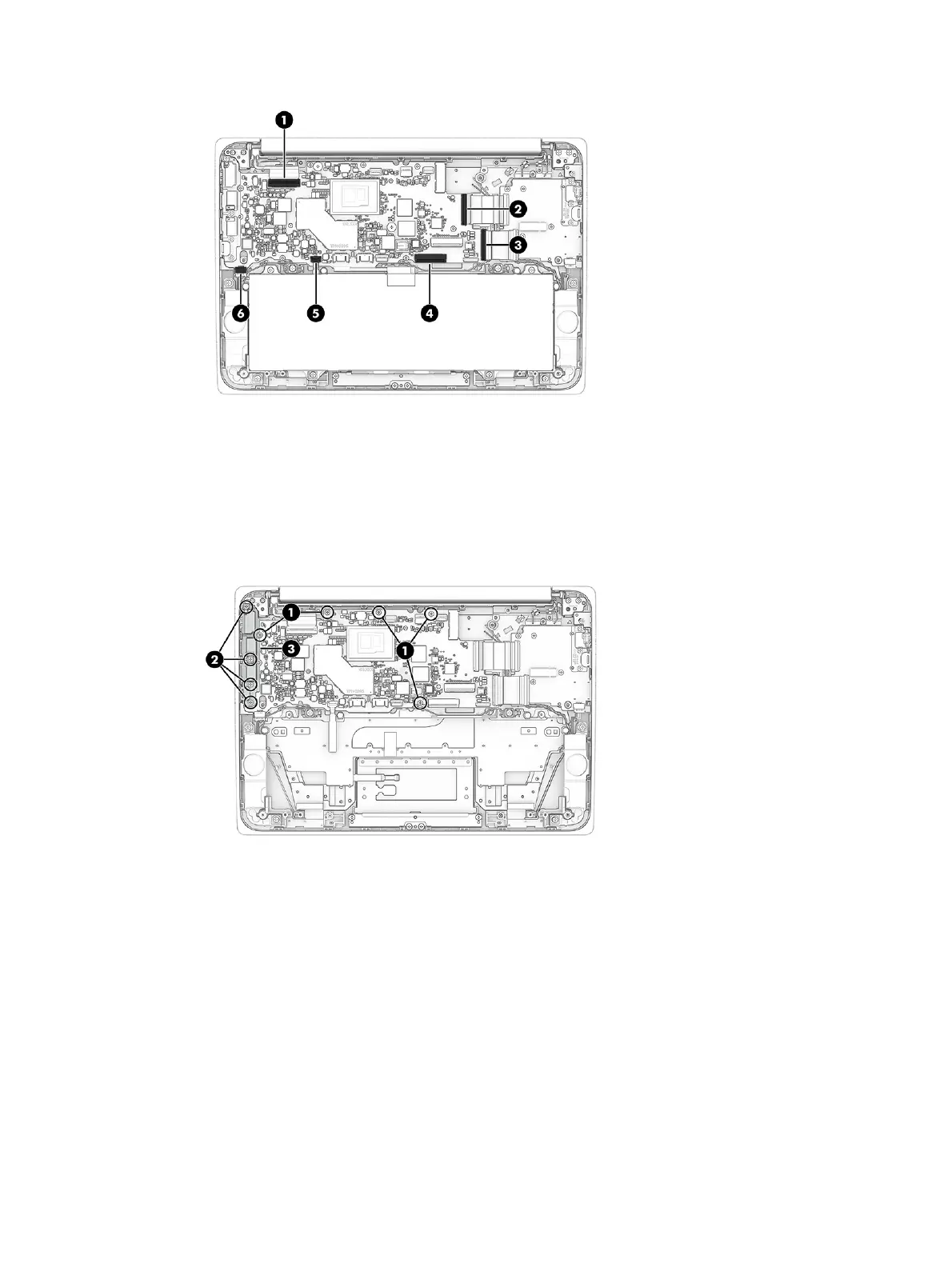

2. Remove the five Phillips M2.0 × 3.0 screws (1) that secure the system board to the computer.
3. Remove the four Phillips M2.0 × 4.5 screws (2) that secure the system board and USB bracket to the
computer.
4. Remove the bracket (3) from the system board.
5. Lift the right side of the system board (1) until it rests at an angle.
System board
41
