Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 80 screws and standoffs, in 10 different sizes, that must be removed, replaced, or
loosened when servicing the computer. Make special note of each screw and standoff size and location
during removal and replacement.

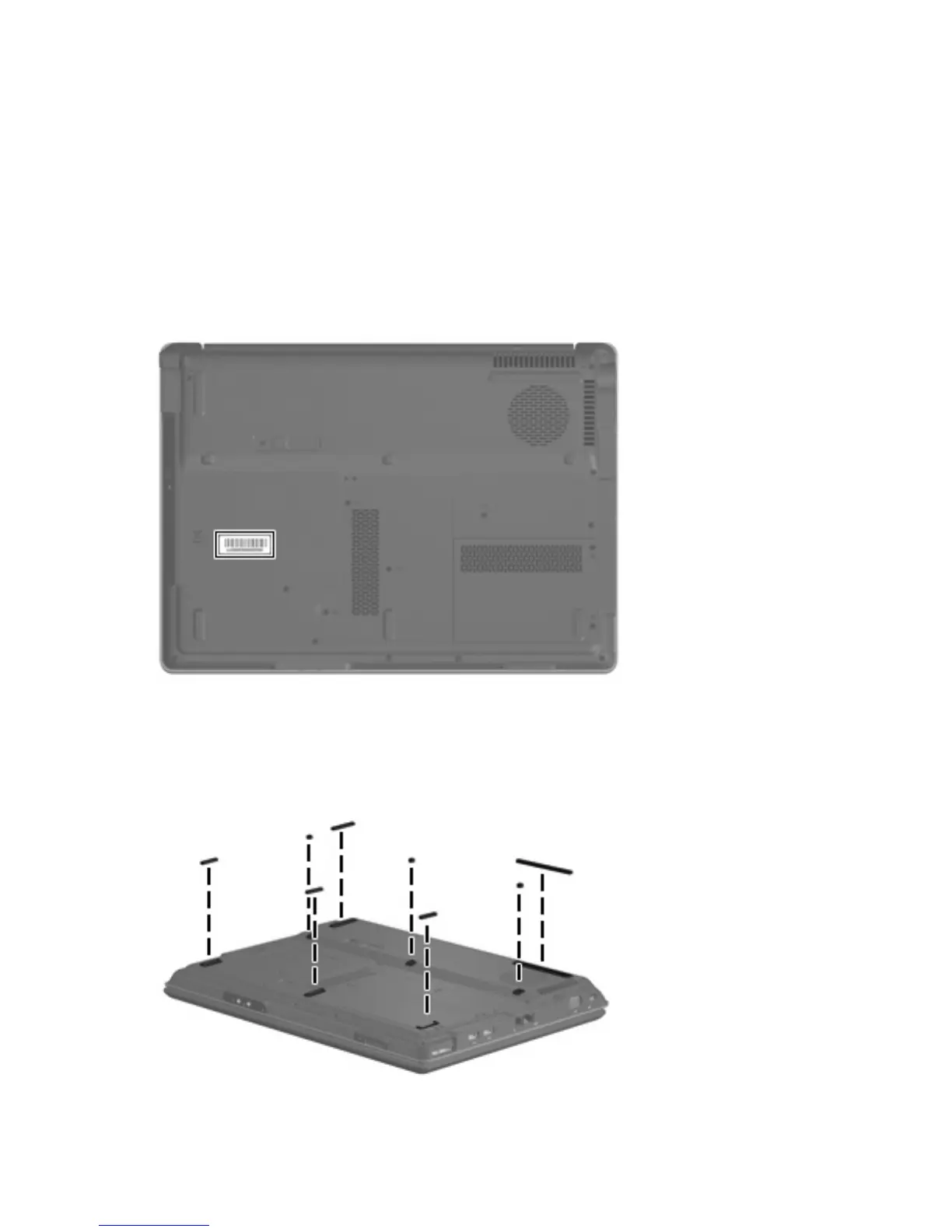

Serial number
Report the computer serial number to HP when requesting information or ordering spare parts. The serial
number is located on the bottom of the computer.
Computer feet
The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Kit, spare part
number 431431-001. There are 8 rubber feet, in 4 different sizes, that attach to the base enclosure in
the locations illustrated below.
36 Chapter 4 Removal and replacement procedures
