Remo
val and replacement pr
ocedure
s
Maintenance and Servi
ce Guide
4–2
5
7.

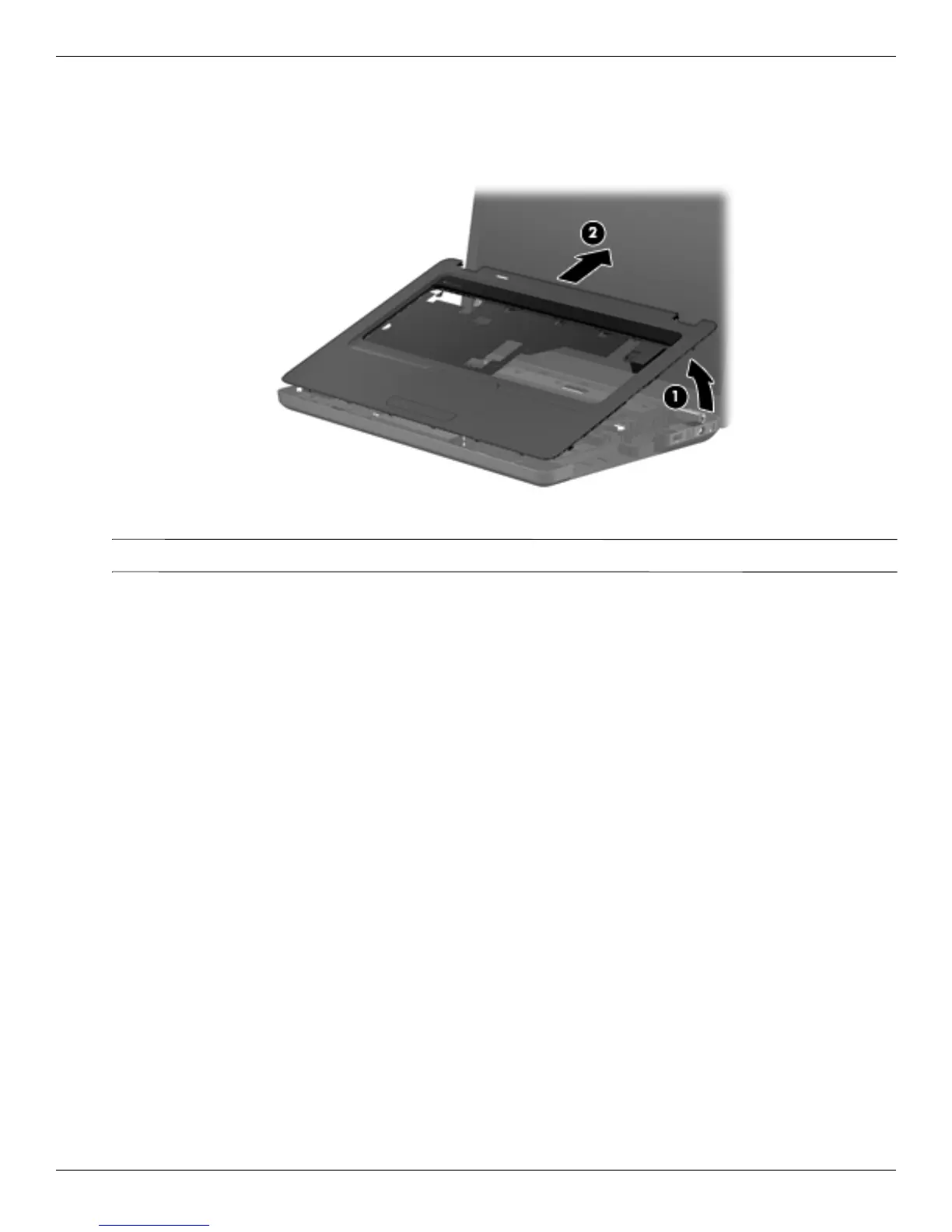

Use a small flat-bladed screwdri
ver to pry along th
e edges of the top cover to release the top co
ver
1
from the
base enclosure.
8.
Remov
e the top co
ver
2
.
✎
The T
ouchPad is glu
ed to the top
cov
er and is includ
ed with the top co
ver spare p
art.
Re
verse this procedure
to install the top co
ver
.
62
64
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
13
Top Components
13
Touchpad
13
Lights
14
Buttons
15
Keys
16
Left-Side Components
17
Right-Side Components
18
Bottom Components
19
Display Components
20
Wireless Antennas
21
Additional Hardware Components
22
3 Illustrated Parts Catalog
23
Service Tag
23
Computer Major Components
24
Display Assembly Components
29
Plastics Kit
31
Mass Storage Devices
32
Miscellaneous Parts
33
Sequential Part Number Listing
34
4 Removal and Replacement Procedures
39
Preliminary Replacement Requirements
39
Tools Required
39
Service Considerations
39
Grounding Guidelines
40
Packaging and Transporting Guidelines
41
Workstation Guidelines
41
Equipment Guidelines
42
Component Replacement Procedures
43
Service Tag
43
Computer Feet
44
Battery
45
Hard Drive
46
Memory Module
49
Wireless Module
51
Optical Drive
54
Keyboard
56
Speakers
59
Top Cover
61
Power Button Board
64
Touchpad Button Board
65
Display Assembly
66
USB Board
77
Power Connector
79
Bluetooth Module
79
Modem
81
System Board
81
System Board
82
RTC Battery
84
Fan/Heat Sink Assembly
85
Processor
91
RJ-1 1 Connector
93
Optical Drive Connector
95
5 Setup Utility
97
Starting Setup Utility
97
Changing the Language of Setup Utility
97
Navigating and Selecting in Setup Utility
98
Displaying System Information
98
Restoring Default Settings in Setup Utility
98
Exiting Setup Utility
99
Setup Utility Menus
99
Main Menu
99
Security Menu
99
System Configuration Menu
100
Diagnostics Menu
100
6 Specifications
101
Computer Specifications
101
Hard Drive Specifications
103
DVD±RW and CD-RW Supermulti Double-Layer Combo Drive with Lightscribe Specifications
104
Blu-Ray ROM with Lightscribe DVD±R/RW Supermulti Double-Layer Drive Specifications
105
7 Backup and Recovery
107
Creating Recovery Discs
107
When to Back up
108
Backup Suggestions
108
Using System Restore Points
109
Performing a Recovery
110
Recovering from the Recovery Discs
110
Recovering from the Dedicated Recovery Partition (Select Models Only)
110
8 Connector Pin Assignments
111
Audio-In (Microphone)
111
Audio-Out (Headphone)
111
External Monitor
112
Hdmi
113
Modem)
114
Network)
114
RJ-11 (Modem)
114
RJ-45 (Network)
114
Universal Serial Bus
115
9 Power Cord Set Requirements
117
Requirements for All Countries and Regions
117
Requirements for Specific Countries and Regions
118
10 Recycling
119
Battery
119
Display
119
Other manuals for HP G72-100 - Notebook PC
User Guide
127 pages
