Removal and replacement procedures
Maintenance and Service Guide 4–33

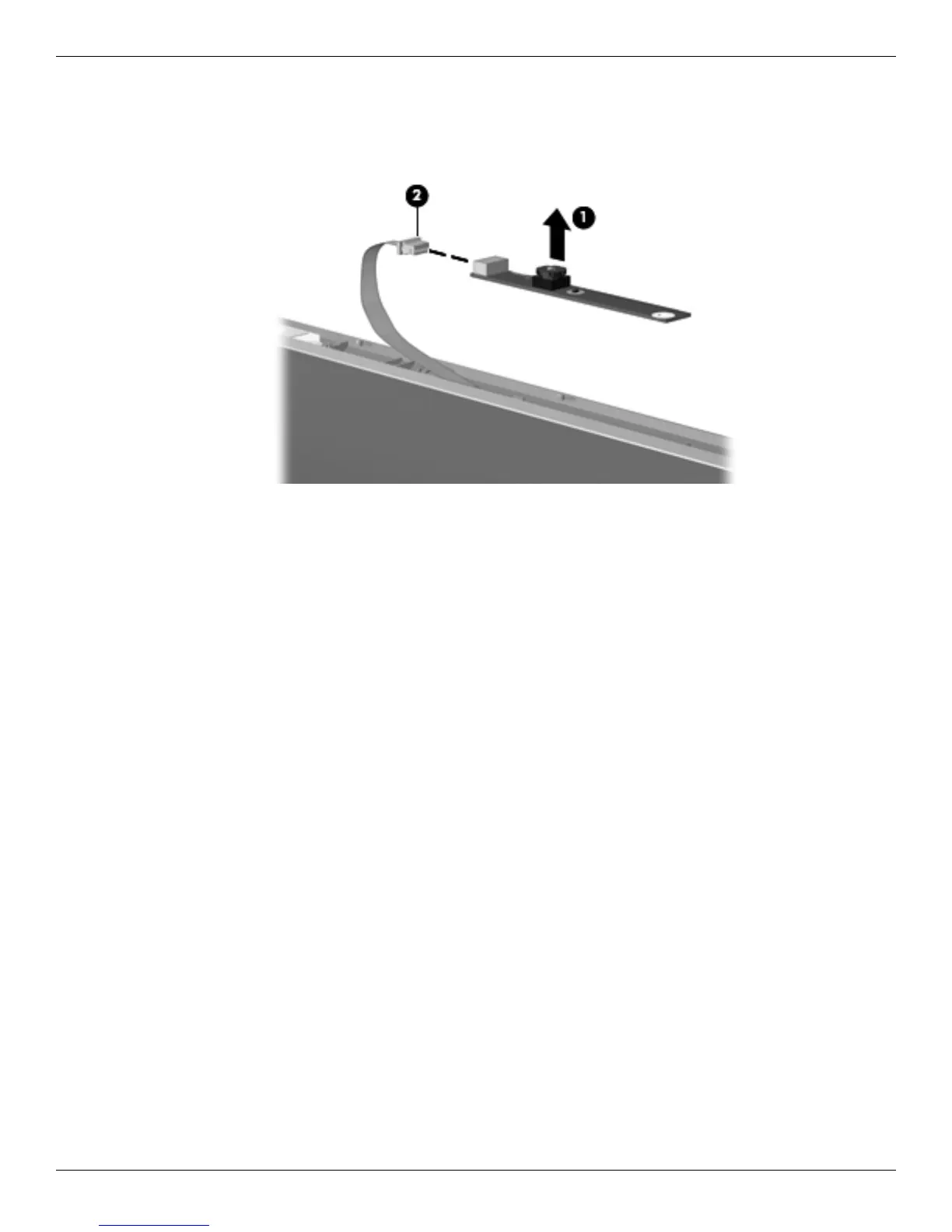

To remove the webcam module (select models only):
1. Lift the webcam module 1 as far from the display enclosure as the webcam module cable allows.
2. Disconnect the webcam module cable 2 from the webcam module, and remove the webcam module. The
webcam module is available using spare part number 600166-001.
Reverse this procedure to install the webcam module.
