4–34 Maintenance and Service Guide
Removal and replacement procedures

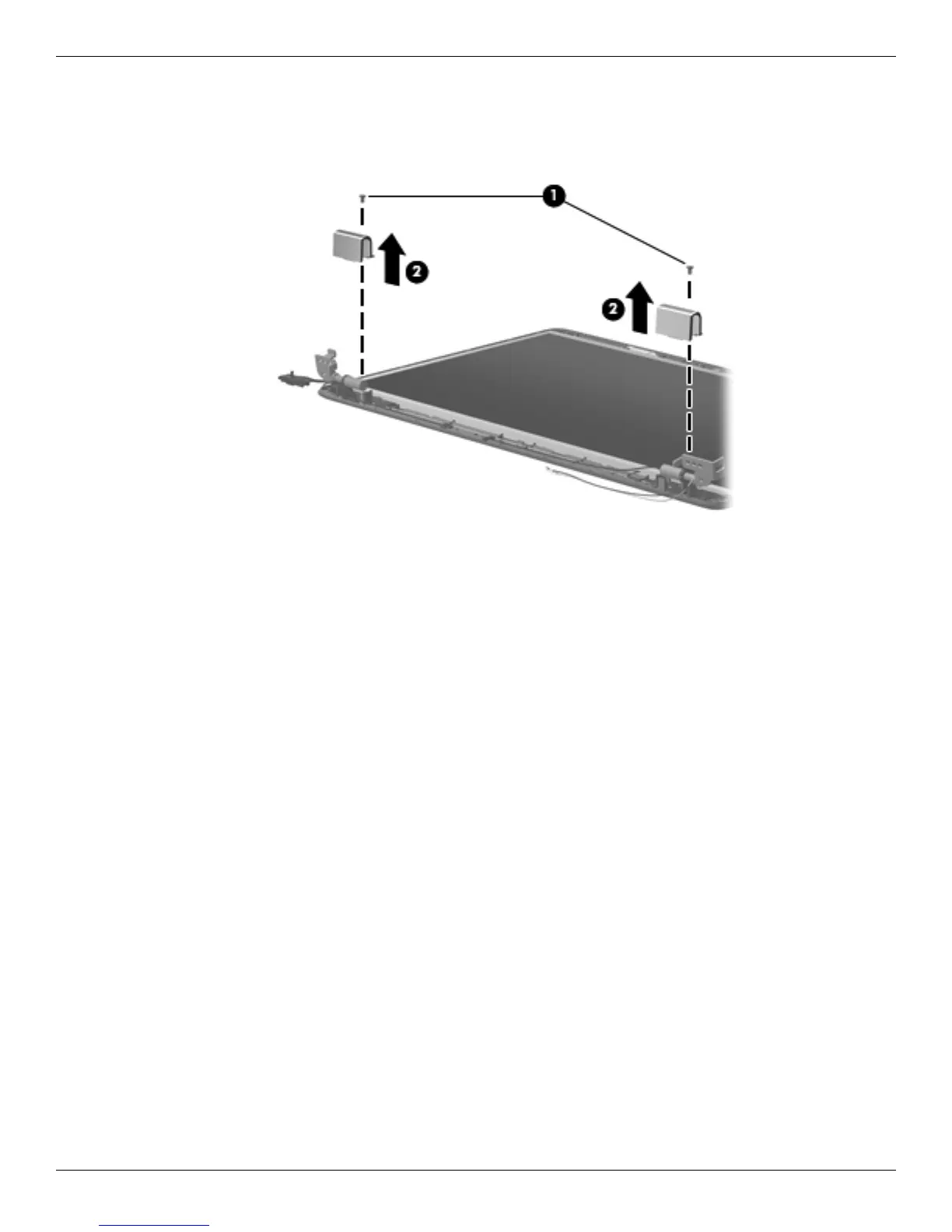

To remove the display hinge covers:
1. Remove the two Phillips PM2.5×6.0 screws 1 that secure the hinges to the display enclosure.
2. Remove the display hinge covers 2. The display hinge covers are available using spare part number
600650-001.
Reverse this procedure to install the display hinge covers.
