Removal and replacement procedures
Maintenance and Service Guide 4–35

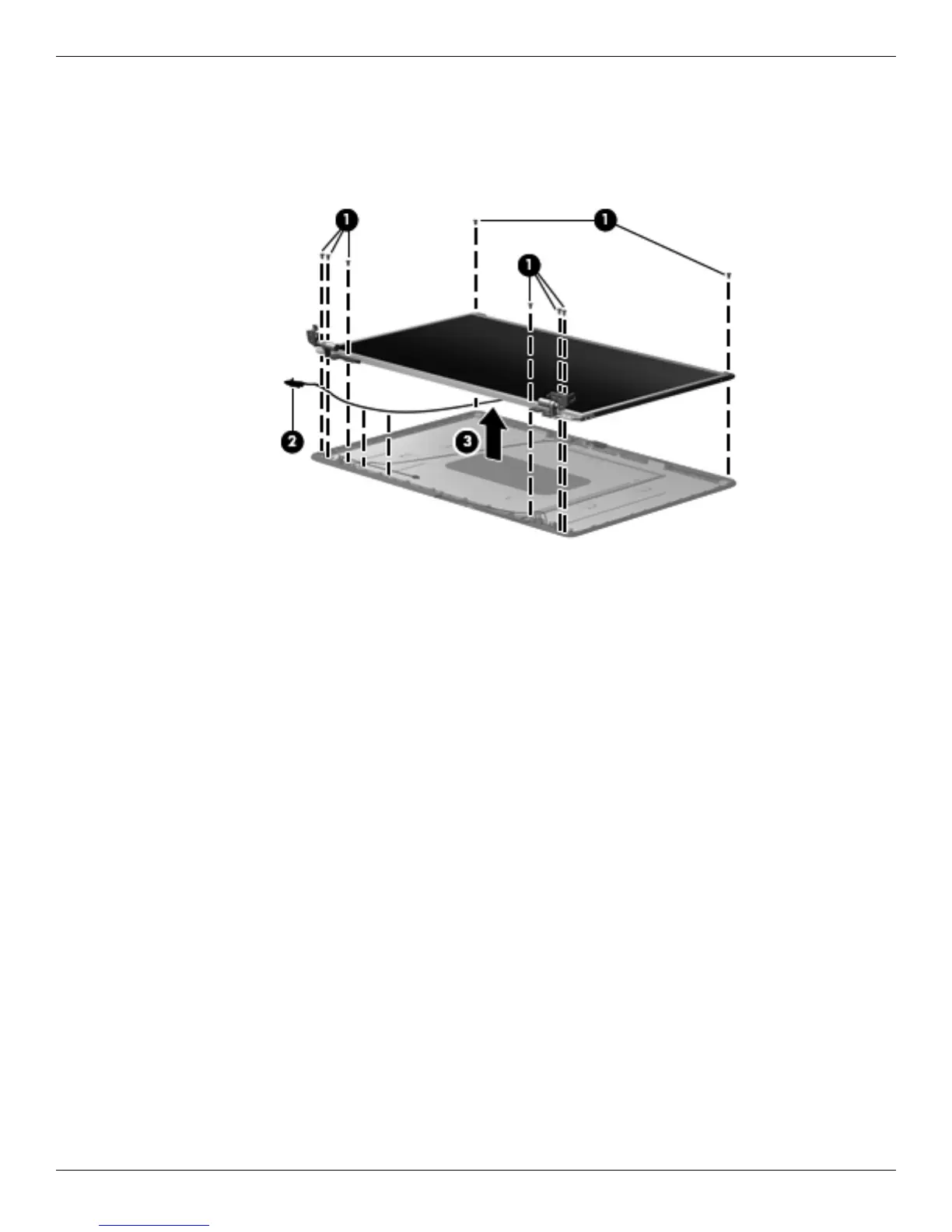

To remove the display panel:
1. Remove the eight Phillips PM2.5×6.0 screws 1 that secure the display panel to the display enclosure.
2. Release the display panel cable 2 from the routing channel.
3. Remove the display panel 3 from the display enclosure.
Reverse this procedure to install the display panel.
