4–36 Maintenance and Service Guide
Removal and replacement procedures

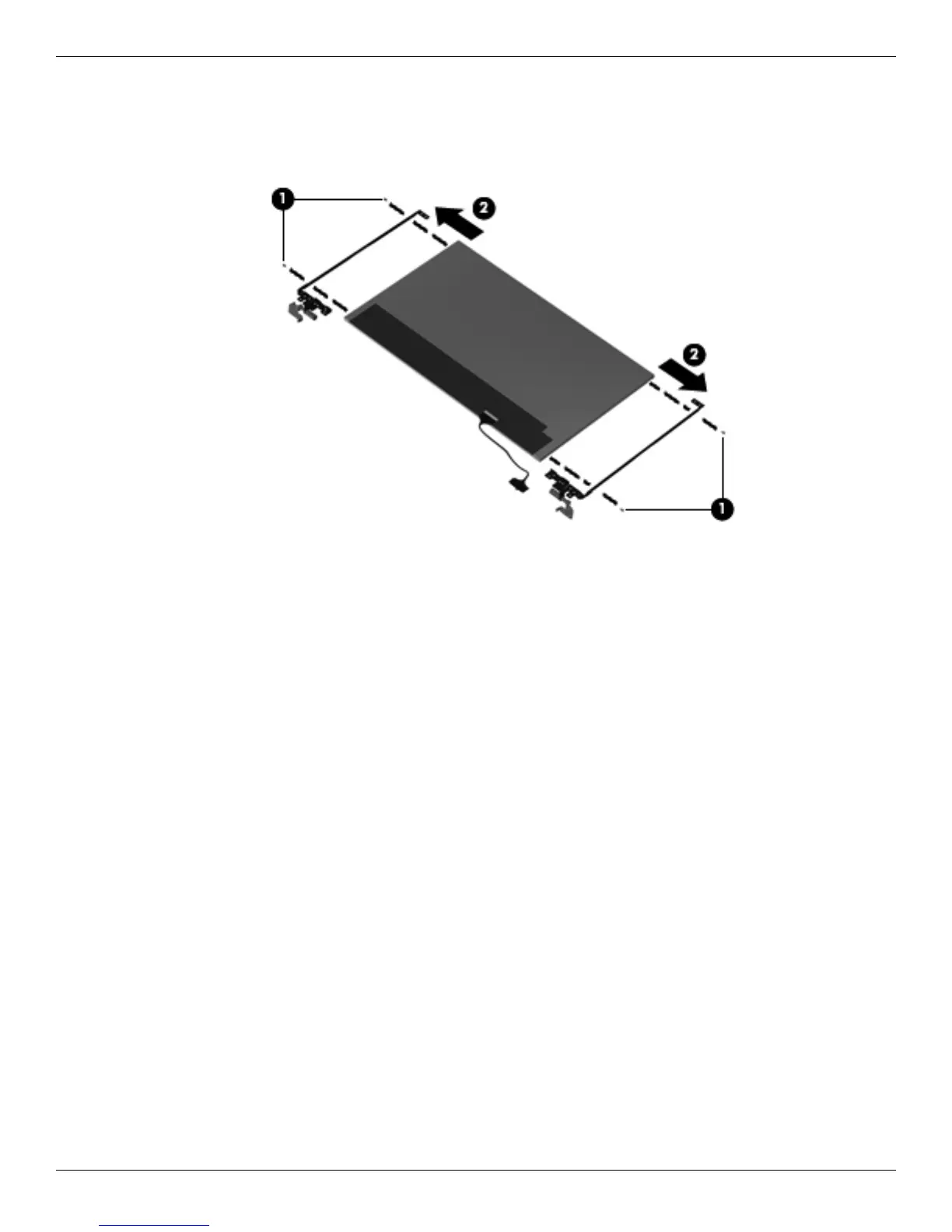

To remove the display panel brackets:
1. Remove the two Phillips PM2.0×3.0 screws 1 that secure each bracket to the display panel.
2. Remove the display panel brackets 2 from the display panel. The display panel brackets are available using
spare part number 600711-001.
Reverse this procedure to install the display panel brackets.
