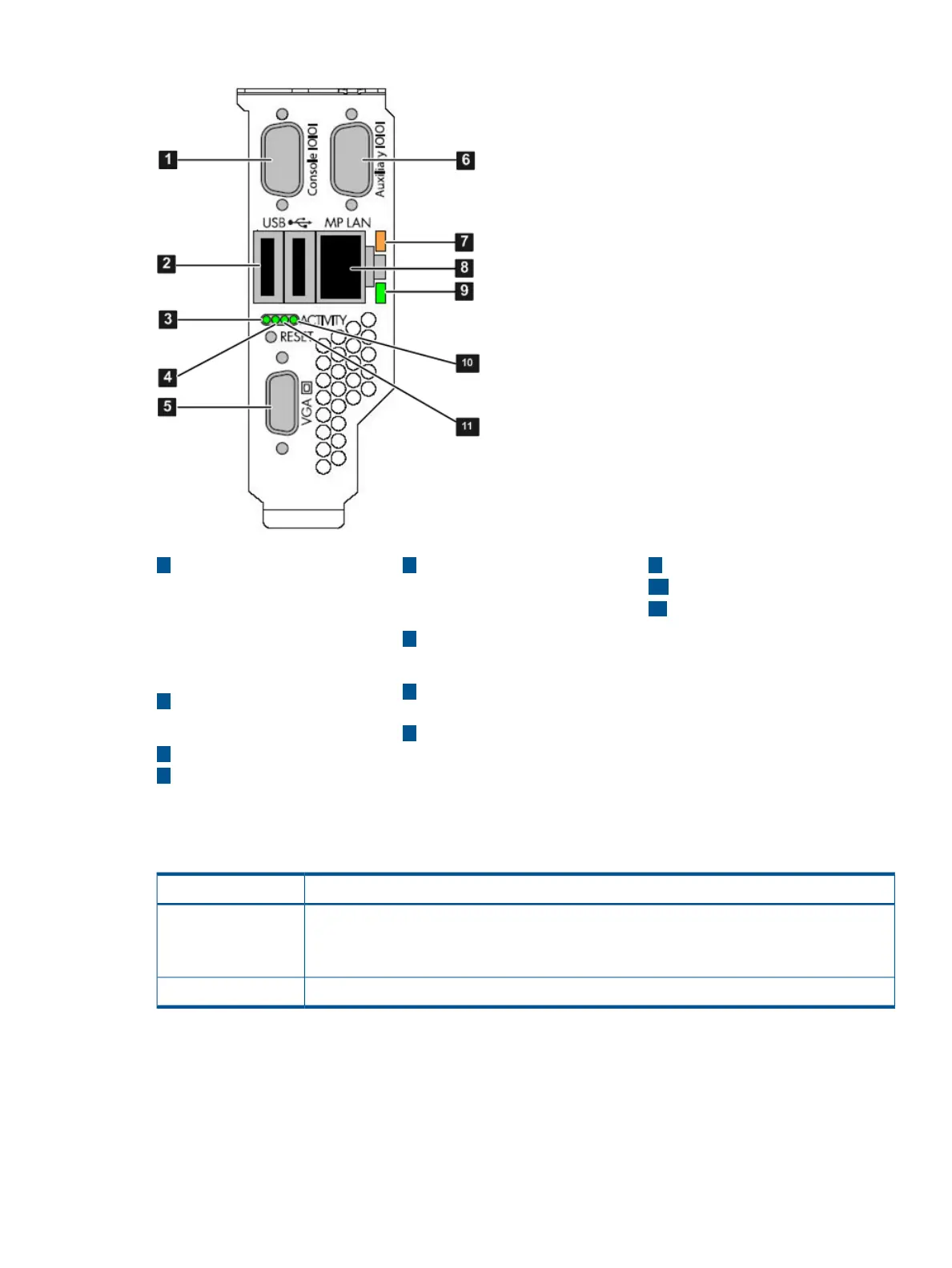

Figure 19 Server Rear Ports
9
Link and Activity LED
5
VGA Port
(No iLO 2 MP access; EFI
only)
1
iLO 2 MP RS-232 Serial
Port (DB-9F to DB-9F
cable)
Connected to emulation
terminal device (PC,
laptop, or ASCII terminal)
10
Standby Power
11
MP Self Test
6
General Use Serial Port
(Printers, etc.)
7
10 Base-T/100 Base-T
Mode LED
2
USB 2.0 Ports
(any USB device)
8
iLO 2 MP LAN Port
(10/100 LAN)
3
BMC Heartbeat
4
MP Heartbeat
Table 12 lists the appropriate connection method, required connection components, and connectors
to the host console. Use this table to determine your physical connection method.
Table 12 Physical Connection Matrix
Required Connection ComponentsConnection Method
RS-232 serial port 1. Host console
2. RS-232 serial port DB-9F to DB-9F cable
3. Emulation terminal device (for example, a PC, laptop, or ASCII terminal)
10/100 LAN cableLAN port
Determining the iLO 2 MP LAN Configuration Method
To access the iLO 2 MP through the iLO 2 MP LAN, the iLO 2 MP must acquire an IP address. The
way the iLO 2 MP acquires an IP address is dependent upon whether DHCP is enabled or disabled
on the server, and if DHCP and DNS services are available to the server. (See Table 13 for possible
scenarios.)
Console Setup 39
