PCI Dev Indicates the PCI Device assigned by the system BIOS to an adapter (range
0x00 - 0x1F, 0 - 31 decimal)
PCI Fnc Indicates the PCI Function assigned by the system BIOS to an adapter (range
0x00 - 0x7, 0 - 7 decimal)
FW Revision Displays the Fusion MPT firmware version and type (IR or IT)
Status Indicates whether the adapter is or is not eligible for software control (enabled,
disabled or error)
Enabled Indicates the EFI Driver is either currently controlling the adapter,
or will attempt to control the adapter upon reload.
Disabled Indicates the EFI Driver is either not controlling the adapter, or
will discontinue control of the adapter upon reload.
Error Indicates that the EFI Driver encountered a problem with the
adapter. Viewing and modifying settings for the adapter is
allowed but the information and functionality available may be
limited.
Adapter Properties Screen
The Adapter Properties screen enables you to view and modify adapter settings. To scan the SAS
controller’s devices, select a SAS controller and press Enter. The Adapter Properties screen displays.

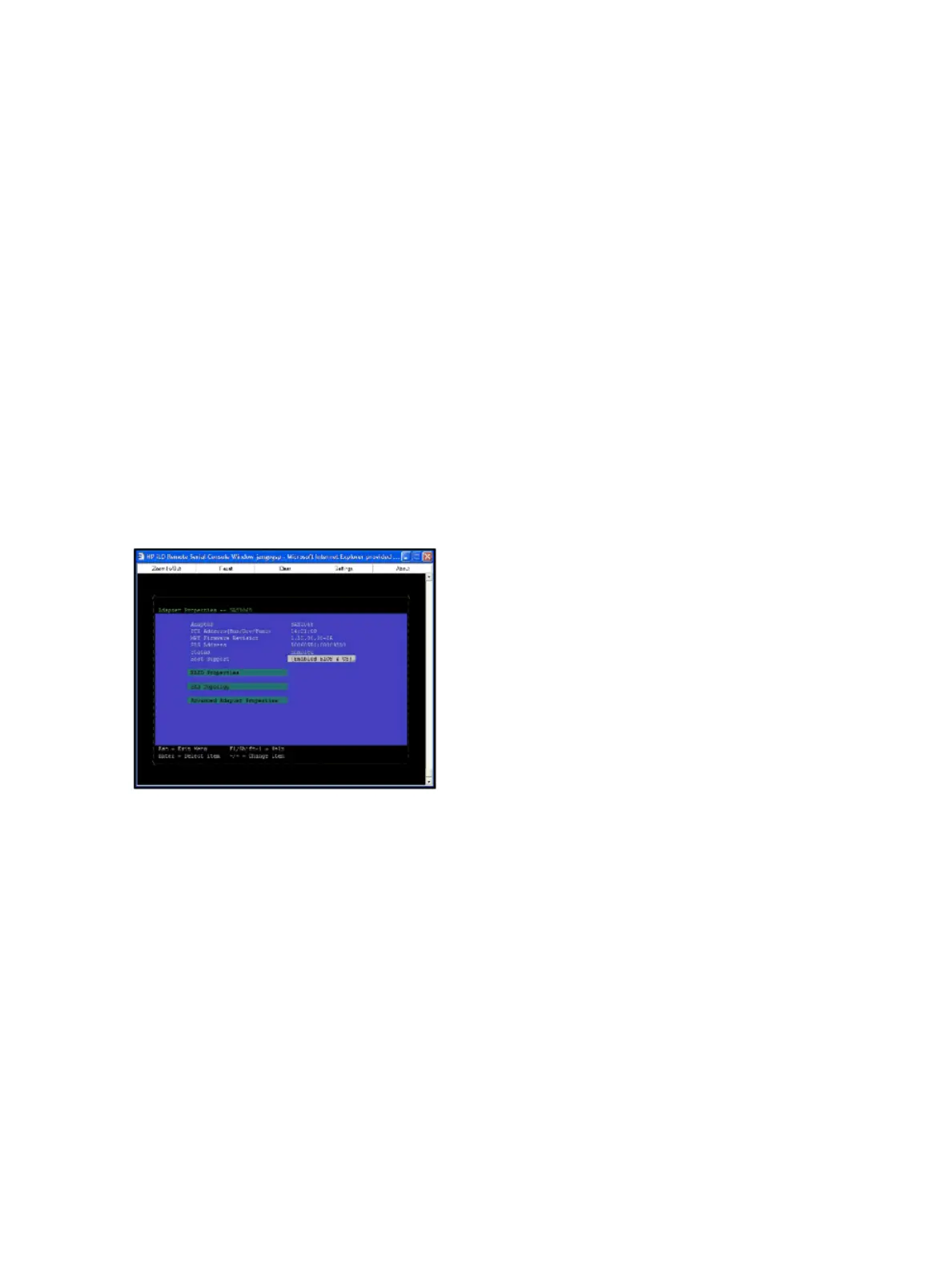

Figure 24 Adapter Properties Screen
Use the arrow keys to select RAID Properties, and press Enter to view the Select New Array Type
screen.
To access the following screens, use the arrow keys to select the screen, and press Enter on the
appropriate field:
• RAID Properties
• SAS Topology
• Advanced Adapter Properties
The following are the descriptions for the Adapter Properties screen.
Adapter Indicates the specific SAS Controller type.
PCI Address Displays the PCI Address assigned by the system BIOS to the adapter.
• Bus value range 0x00 - 0xFF, 0 - 255 decimal
• Device value range 0x00 - 0x1F, 0 - 31 decimal
• Function range 0x00 - 0x7, 0 - 7 decimal
54 Installing the System
